Type 46 series

TYPE 46 & 46X Series Trimmer

Voltage Rating: 175VDC/350VDC TEST

Case Measurement: 5/8" Wide x 3/4 " Long

RF Parts stocks both A and B packages. C package is no longer available. D package is no longer available. Please contact Sales Staff for more info.

Part Number	Package Type	Min/Max
460	A	3-15
461	A	5-30
461-PC	B	5-30
462	A	10-80

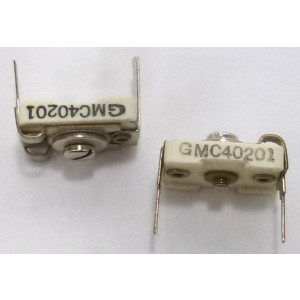

GMC40201 Ltd Qty	C	10-80

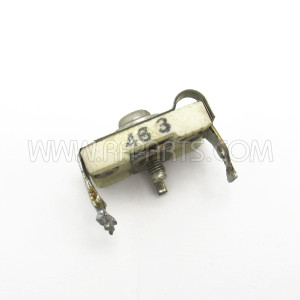

463	A	20-180
464	A	45-280

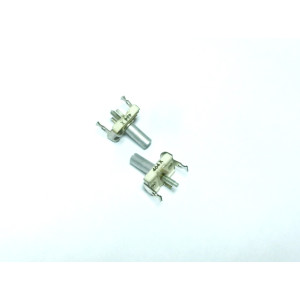

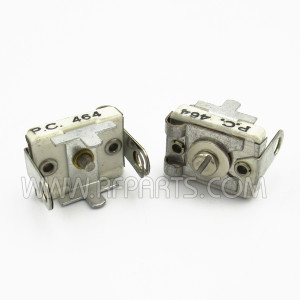

464-PC	B	45-280
S464 (Same as 464, but with bracket)	A	45-280
465	A	75-380
GMA80400 Ltd Qty	A	75-380
466	A	105-480
466X	A	105-480

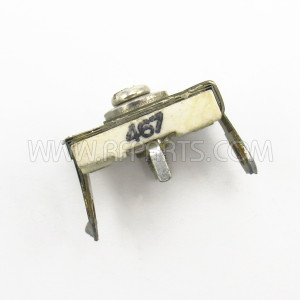

467	A	140-580
468	A	175-680
469	A	215-790
103-0004-00 Ltd Qty	B	215-790

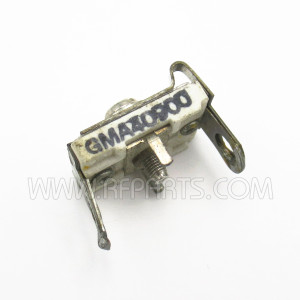

GMA40900 Ltd Qty	A	215-790
4611	A	300-1000

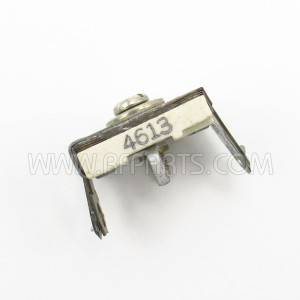

4613	A	360-1200
4614	A	380-1300
4615	A	420-1400

Grid

Show per page

Sort By 🔽

461 Arco Trimmer Compression Mica 5-30 pF

$18.91

In Stock

This capacitor style is supplied with a staple which is used for mounting the trimmer on a 5/16" width bracket. The capacitor terminals have elongated holes for point to point wiring.

Range: 5-30 pF
Voltage - Working: 175 / 250 vdc
Size: 0.80" Long x 0.615" wide

New Old Stock * No longer available for export
MFR: Arco
SKU: 461

View Product

460 Arco Mica Compression Trimmer Capacitor 1.5-15 pF (NOS)

$12.91

In Stock

Mica Compression Trimmer Capacitor 3-15pF, 46 Series
New Old Stock * No longer available for export
MFR: Arco
SKU: 460

View Product

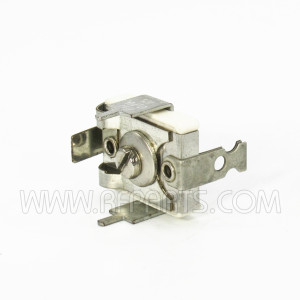

746A15 Arco Trimmer Variable Compression Mica Capacitor 30-330 pF Type 46 Series Special (465)

$17.91

In Stock

This capacitor style is special with PCB mounting and different solder tabs on either side.

Range: 30-330 pF
Size: 0.80" Long x 0.615" wide

New Old Stock * No longer available for export
MFR: Arco
SKU: 746A15

View Product

746A15 Arco Compression Mica Trimmer 30-330 pF (465) (Pull)

$14.91

In Stock

746A15 Trimmer, Variable Compression Mica Capacitor, 30-330 pF, Type 46 series, Special
Used * No longer available for export
MFR: Arco
SKU: 746A15-P
