Type 46 series
TYPE 46 & 46X Series Trimmer
Voltage Rating: 175VDC/350VDC TEST
Case Measurement: 5/8" Wide x 3/4 " Long
DATA SHEET PAGE DATA SHEET PAGE 2
RF Parts stocks both A and B packages. C package is no longer available. D package is no longer available. Please contact Sales Staff for more info.
| Part Number | Package Type | Min/Max |
|---|---|---|
| 460 | A | 3-15 |
| 461 | A | 5-30 |
| 461-PC | B | 5-30 |
| 462 | A | 10-80 |
| GMC40201 Ltd Qty | C | 10-80 |
| 463 | A | 20-180 |
| 464 | A | 45-280 |
| 464-PC | B | 45-280 |
| S464 (Same as 464, but with bracket) |
A | 45-280 |
| 465 | A | 75-380 |
| GMA80400 Ltd Qty | A | 75-380 |
| 466 | A | 105-480 |
| 466X | A | 105-480 |
| 467 | A | 140-580 |
| 468 | A | 175-680 |

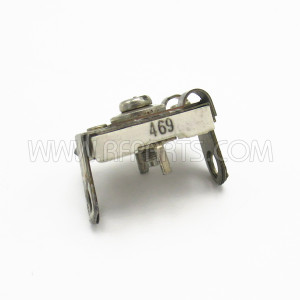

| 469 | A | 215-790 |
| 103-0004-00 Ltd Qty | B | 215-790 |
| GMA40900 Ltd Qty | A | 215-790 |
| 4611 | A | 300-1000 |
| 4613 | A | 360-1200 |
| 4614 | A | 380-1300 |
| 4615 | A | 420-1400 |
4613 ARCO Compression Mica Trimmer Capacitor 340-1200 pf (Pull)
In Stock
Compression MIca Trimmer Capacitor
Used * No longer available for export
MFR: Arco
SKU: 4613-P
467 FW Compression Mica Trimmer Capacitor 140-580 pf (Pull)
In Stock
- PF Rating: 140- 580
- Dimensions: 5/8" x 3/4"
- Series: Type 46
Used * No longer available for export
MFR: FW Capacitors
SKU: 467-P
468 Compression Mica Trimmer Capacitor 175-680 pf (Pull)
In Stock
PF Rating: 175- 680
Dimensions: 5/8" x 3/4"
Series: Type 46
Used * No longer availabale for export
SKU: 468-P

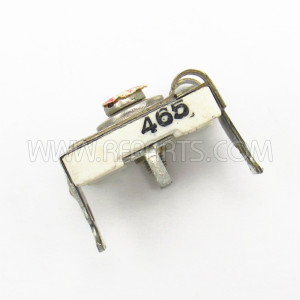

465 FW Compression Mica Trimmer Capacitor 75-380pf (Pull)
Out of Stock
465 FW Compression Mica Trimmer Capacitor 75-380pf (Pull)
Used* No longer available for export
MFR: FW Capacitors
SKU: 465-P
GMC40201 Sprague Goodman Compression Mica Trimmer 10-80pF (NOS)
In Stock
This capacitor style is designed for printed circuit board mounting with 2 terminals.
- Range: 10-80 pF
- Voltage - Working: 175 / 250 vdc
New OIld Stock * No longer available for export
MFR: Sprague Goodman
SKU: GMC40201

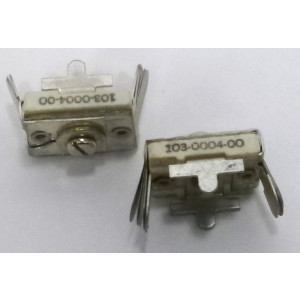

103-0004-00 Compression Mica Trimmer 215-790pf PC Mount (469-PC)
In Stock
This capacitor style is supplied with a raised staple and solid terminals for printed circuit applications.
- MFR Part number: 103-0004-00, (Similar to 469-PC)
- Range: 215-790 pF
- Voltage - Working: 175 / 250 vdc
- Size: 0.80" Long x 0.615" wide
New Old Stock * No longer available for export
SKU: 103-0004-00

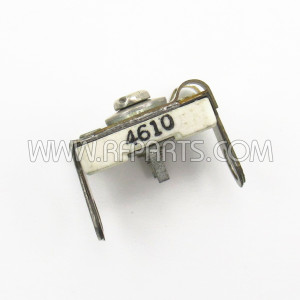

4610 Arco Compression Mica Variable Capacitor 260-900pf 350v (NOS)
In Stock
4610 Arco Compression Mica Variable Capacitor 260-900pf 350v (NOS)
New Old Stock * No longer available for export
MFR: Arco
SKU: 4610
