Hammarlund, Millen, & Bud Capacitors
|
HAMMARLUND, MILLEN, & BUD AIR VARIABLE CAPACITORS Limited Quantity Available. NOS Original Capacitors (Some in original factory boxes) (* For Reference Only - Not Available) |
| Hammarlund Part Number | Capacitance | Plates / Section | Dimensions, Inches. LxWxH | |
|---|---|---|---|---|
| Max. | Min. | |||
| 20 | 5.5 | 3 (Single) | 1-7/32 | |
| 20 | 6.8 | 7 (Single) | ||
| 53 | 10.5 | 19 (Single) | ||
| 53 | 11.5 | 19 (Single) | ||
|
MC100M *
|
100 | 7.7 | 14 (Single) | 1-1/16 |
| 100 | 16.5 | 35 (Single) | 3-29/32 | |
| 250 | 12 | 34 (Single) | 2.33" x 1.703" x 0.5" | |
| 31 | 6 | 11 (Dual) | ||
| 50 | 5.5 | 7 (Dual) | 1.625" x 3" x 1.75" | |
| 100 | 7 | 14 (Dual) | ||
| 105 | 9.5 | 14 (Single) | ||
| 143.5 | 11 | 19 (Single) | ||
| 25 | 23 | 7 (Single) | 0.912" x 1.25" x 0.812" | |
|
APC25C *
|
25 | 3.0 | 7 (Single) | 21/64 |
|
APC30P *
|
30 | 3.0 | 15 (Single) | 13/16 |
|
APC50 *
|
50 | 3.9 | 14 (Single) | 1/2 |
| 75 | 4.6 | 20 (Single) | 11/16 | |
| 75 | 4.6 | 20 (Single) | 11/16 | |
|

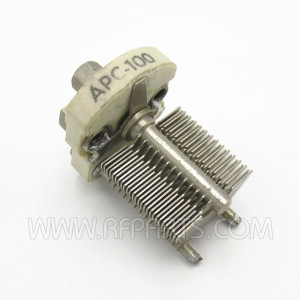

APC100 *
|
100 | 5.5 | 27 (Single) | |
|
APC100C *
|
100 | 5.5 | 27 (Single) | 59/64 |
|
APC140 *
|
140 | 6.3 | 37 (Single) | 1.75" x 1.3" x 1.17" |
|
APC140C *
|
140 | 6.3 | 37 (Single) | 1.75" x 1.3" x 1.17" |
| 14.5 | 3.4 | 7 (Butterfly) | 1.25" x 1.375" x 1.375" | |
|
BFC25 *
|
27.3 | 4.8 | 13 (Butterfly) | 0.968" x 1.375" x 1.375" |
| 40.1 | 6.2 | 19 (Butterfly) | ||
| 17.5 | 2.8 | 5 (Single) | 17/64 | |
| 30 | 5.2 | 20 (Single) | 1-5/16 | |
| 36 | 3.2 | 10 (Single) | ||
| 52 | 3.7 | 14 (Single) | 1.172" x 1.3" x 1.172" | |
|
HF140 (Can Sub 32APL144DE)
|
142 | 6.3 | 37 (Single) | 1.75" x 1.3" x 1.172" |
| 16 | 2.8 | 5 (Single) | ||
| 16 | 4 | 9 (Single) | ||
| 102 | 4.5 | 19 (Single) | ||
| 100 | 7.5 | 27 (Single) | ||
| 200 | 8 | 38 (Single) | ||
|
HFD15X *
|
15 | 3 | 22 (Single) | 1.5" x 2.6" x 1" |
| 142 | 6.3 | 37 (Dual) | ||
| 5.4 | 1.3 | 5 (Single) | 0.609" x 0.75" x 0.625" | |
|
MAC10 *
|
9.6 | 1.5 | 9 (Single) | - |
| 15.8 | 1.9 | 15 (Single) | - | |
| 15.8 | 1.9 | Rotor: 8 Ea. Stator: 7 |
||
| 21.5 | 2.2 | 21 (Single) | - | |
| 32.0 | 2.5 | 27 (Single) | - | |
|
MACBF3 *
|
3.1 | 1.3 | 3 (Butterfly) | 0.75" x 0.75" x 0.625" |
|
MACBF11 *
|
10.8 | 2.4 | 11 (Butterfly) | 1.062" x 0.75" x 0.625" |
| 15 | 2.3 | 6 (Single) | 17/64 | |
| 15 | 2.3 | 6 (Single) | 17/64 | |
| 25 | 2.6 | 10 (Single) | 3/8 | |
| 25 | 2.6 | 10 (Single) | 3/8 | |
| 35 | 2.9 | 14 (Single) | 15/32 | |
|
MAPC50 *
|
50 | 3.2 | 19 (Single) | 37/64 |
|
MAPC50B *
|
50 | 3.2 | 1.9 (Single) | 37/64 |
| 50 | 3.2 | 1.9 (Single) | 37/64 | |
| 75 | 3.9 | 29 (Single) | 53/64 | |
|
MAPC75B *
|
75 | 3.9 | 29 (Single) | 53/64 |
| 100 | 4.5 | 38 (Single) | 1-5/64 | |
| 100 | 4.5 | 38 (Single) | 1-5/64 | |
|
Misc. Hammarlund Caps |
||||
| 144 | 12 | 34 (Single) | 1.4" x 2.3" x 1.36" | |
| 420 | 20 | 55 (Single) | 3.34" x 1.82" x 1.67" | |
| 510 | 25 | 69 | ||
| 20 | 7 | 4 (Single) | 1.7" x 1.7" x 1.8 " (Shaft Length 4.5") |
|
|
VU20 *
|
20 | 2.2 | 11 | |
|
|
||||
|
Millen Caps |
||||
|
17025
|
25 | 3 | 4 | |
|
19015
|
20 | 5.5 | 3 | |
| 30.5 | 5.7 | 4 | ||
|
23025
|
23 | 4 | 5 | |
|
Bud Caps |
||||
|
MC904
|
75 | 7 | 11 | |
|
Misc. Items |
||||
| Flexible Coupling (See Shaft Couplers) | ||||
-
NZ-10 Hammarlund Neutralizing Capacitor 2.3 to 10mmf 3000v (NOS/NIB)
$39.91 -
Bud Air Variable Capacitor 10-100pf 1kv (Pull)
$36.91 -

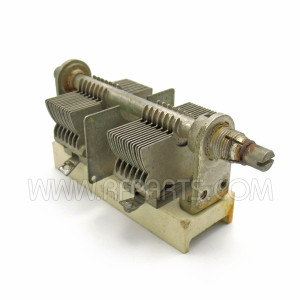

58A317 Hammarlund Air Variable Capacitor 10-100pf 1.2kv (Pull)
$44.91 -

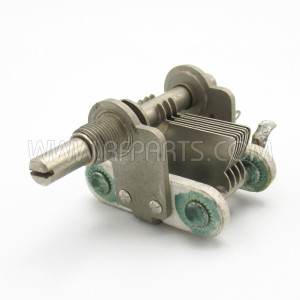

MC-50-M Hammarlund Air Variable Capacitor 10-50pf 1Kv (Pull)
$19.91 -

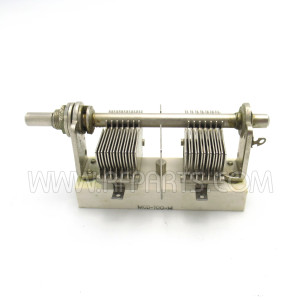

MCD-100-M Hammarlund Duel Section Air Variable Capacitor 8-100pf 1Kv (NOS)
$99.91 -

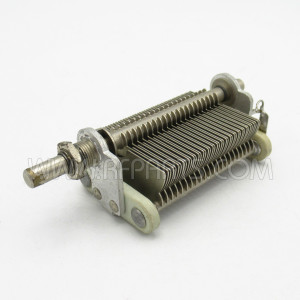

MC325M Hammarlund Variable Capacitor 12- 325pf 1.5Kv (Pull)
$49.91 -

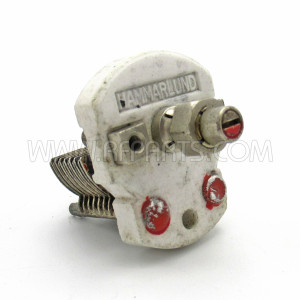

290 Hammerlund Variable Capacitor 4-55pf 800v (Pull)
$24.91 -
Hammarlund Butterfly Variable Capacitor 5-30pf 3kv (Pull)
$24.95 -
HFD-100 Hammarlund Dual Section Variable Capacitor 4-27pf 1Kv (Pull)
$32.91 -
MC325M Hammarlund Variable Capacitor 15- 325pf 1.5Kv (NOS)
$62.91
