Hammarlund, Millen, & Bud Capacitors
HAMMARLUND, MILLEN, & BUD AIR VARIABLE CAPACITORS
Limited Quantity Available. NOS Original Capacitors (Some in original factory boxes)
(* For Reference Only - Not Available)
| Hammarlund Part Number | Capacitance | Plates / Section | Dimensions, Inches. LxWxH | |
|---|---|---|---|---|
| Max. | Min. | |||
| MC20S | 20 | 5.5 | 3 (Single) | 1-7/32 |
| MC20SX | 20 | 6.8 | 7 (Single) | |
| MC50MX | 53 | 10.5 | 19 (Single) | |
| MC50SX | 53 | 11.5 | 19 (Single) | |
| MC100M * | 100 | 7.7 | 14 (Single) | 1-1/16 |
| MC100SX | 100 | 16.5 | 35 (Single) | 3-29/32 |
| MC250M | 250 | 12 | 34 (Single) | 2.33" x 1.703" x 0.5" |
| MCD35MX | 31 | 6 | 11 (Dual) | |
| MCD50M | 50 | 5.5 | 7 (Dual) | 1.625" x 3" x 1.75" |
| MCD100S | 100 | 7 | 14 (Dual) | |
| RMC100S | 105 | 9.5 | 14 (Single) | |
| RMC140S | 143.5 | 11 | 19 (Single) | |
| APC25 | 25 | 23 | 7 (Single) | 0.912" x 1.25" x 0.812" |
| APC25C * | 25 | 3.0 | 7 (Single) | 21/64 |
| APC30P * | 30 | 3.0 | 15 (Single) | 13/16 |
| APC50 * | 50 | 3.9 | 14 (Single) | 1/2 |
| APC75 | 75 | 4.6 | 20 (Single) | 11/16 |
| APC75C | 75 | 4.6 | 20 (Single) | 11/16 |
| APC100 * | 100 | 5.5 | 27 (Single) | |
| APC100C * | 100 | 5.5 | 27 (Single) | 59/64 |
| APC140 * | 140 | 6.3 | 37 (Single) | 1.75" x 1.3" x 1.17" |
| APC140C * | 140 | 6.3 | 37 (Single) | 1.75" x 1.3" x 1.17" |
| BFC12 | 14.5 | 3.4 | 7 (Butterfly) | 1.25" x 1.375" x 1.375" |
| BFC25 * | 27.3 | 4.8 | 13 (Butterfly) | 0.968" x 1.375" x 1.375" |
| BFC38 | 40.1 | 6.2 | 19 (Butterfly) | |
| HF15 | 17.5 | 2.8 | 5 (Single) | 17/64 |
| HF30-X | 30 | 5.2 | 20 (Single) | 1-5/16 |
| HF35 | 36 | 3.2 | 10 (Single) | |
| HF50 | 52 | 3.7 | 14 (Single) | 1.172" x 1.3" x 1.172" |
| HF140 (Can Sub 32APL144DE) | 142 | 6.3 | 37 (Single) | 1.75" x 1.3" x 1.172" |
| HFA15B | 16 | 2.8 | 5 (Single) | |
| HFA15E | 16 | 4 | 9 (Single) | |
| HFA100A | 102 | 4.5 | 19 (Single) | |
| HFA100B | 100 | 7.5 | 27 (Single) | |
| HFA200A | 200 | 8 | 38 (Single) | |
| HFD15X * | 15 | 3 | 22 (Single) | 1.5" x 2.6" x 1" |
| HFD140 | 142 | 6.3 | 37 (Dual) | |
| MAC5 | 5.4 | 1.3 | 5 (Single) | 0.609" x 0.75" x 0.625" |
| MAC10 * | 9.6 | 1.5 | 9 (Single) | - |
| MAC15 | 15.8 | 1.9 | 15 (Single) | - |
| MAC15-15 | 15.8 | 1.9 | Rotor: 8 Ea. Stator: 7 |
|
| MAC20 | 21.5 | 2.2 | 21 (Single) | - |
| MAC30 | 32.0 | 2.5 | 27 (Single) | - |
| MACBF3 * | 3.1 | 1.3 | 3 (Butterfly) | 0.75" x 0.75" x 0.625" |
| MACBF11 * | 10.8 | 2.4 | 11 (Butterfly) | 1.062" x 0.75" x 0.625" |
| MAPC15 | 15 | 2.3 | 6 (Single) | 17/64 |
| MAPC15C | 15 | 2.3 | 6 (Single) | 17/64 |
| MAPC25 | 25 | 2.6 | 10 (Single) | 3/8 |
| MAPC25C | 25 | 2.6 | 10 (Single) | 3/8 |
| MAPC35 | 35 | 2.9 | 14 (Single) | 15/32 |
| MAPC50 * | 50 | 3.2 | 19 (Single) | 37/64 |
| MAPC50B * | 50 | 3.2 | 1.9 (Single) | 37/64 |
| MAPC50C | 50 | 3.2 | 1.9 (Single) | 37/64 |
| MAPC75 | 75 | 3.9 | 29 (Single) | 53/64 |
| MAPC75B * | 75 | 3.9 | 29 (Single) | 53/64 |
| MAPC100 | 100 | 4.5 | 38 (Single) | 1-5/64 |
| MAPC100-C | 100 | 4.5 | 38 (Single) | 1-5/64 |
|
Misc. Hammarlund Caps |
||||
| 32APL144DE | 144 | 12 | 34 (Single) | 1.4" x 2.3" x 1.36" |
| 9420-10-10023 | 420 | 20 | 55 (Single) | 3.34" x 1.82" x 1.67" |
| C456-0201 * | 510 | 25 | 69 | |
| F1-397 | 20 | 7 | 4 (Single) | 1.7" x 1.7" x 1.8 " (Shaft Length 4.5") |
| VU20 * | 20 | 2.2 | 11 | |
|
Millen Caps |
||||
| 17025 | 25 | 3 | 4 (Single) | 1.1" x 1.95" x 1.9" |

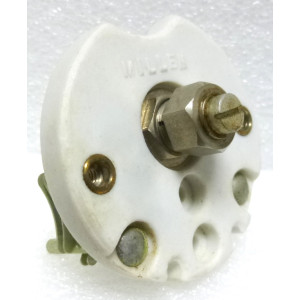

| 17035 | 35 | 3 | 5 (Single) | 1.1" x 1.95" x 1.9" |
| 17050 | 50 | 4 | 7 (Single) | 1.1" x 1.95" x 1.9" |
| 19015 | 20 | 5.5 | 3 (Single) | 1 1/4" x 1 45/64" x 1/2" |
| 19025 | 30.5 | 5.7 | 4 (Single) | 0.925" x 1.57" x 1.28" |
| 20025 | 25 | 3 | 7 (Single) | |

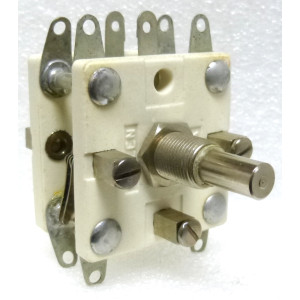

| 23025 | 23 | 4 | 5 (Single) | 1.5" x 1.44" x 1.51" |
|
Bud Caps |
||||
| MC904 | 75 | 7 | 11 | |
|
Misc. Items |
||||
| FC46S | Flexible Coupling (See Shaft Couplers) | |||
08-150-012 ASP Variable Capacitor 5-30pf 1kv (NOS)
In Stock
Min/Max Cap Pf: 5-30
Total Plates: 11
Peak Volts: 1000v
L x W x H: 1-3/16" x 15/16" x 1-1/4"
Shaft Diameter: 1/4" Round - Slotted
Shaft Length: 5/16"
New Old Stock * No longer available for export
MFR: ASP
SKU: 08-150-012
6301 ICA Insuline Midget Condenser 10-130pf 1kv (Pull)
In Stock
Highly efficient, compact and rugged condenser for short wave receivers and transmitters.
Non-corrosive plates
Phosphor-Bronze rotor contacts
Min/Max Cap Pf: 10-130
Total Plates: 19
Peak Volts: 1000v
Used * No longer available for export
MFR: ICA Insuline Radio Products
SKU: 6301-ICA-P
APC-100 Hammarlund Variable Capacitor 5-100pf 1.5kv (Pull)
In Stock
- Min/Max Capacitance: 5 -100 pf
- Total Plates: 27
- Peak Volts: 1500v
Used * No longer available for export
MFR: Hammarlund
SKU: APC-100-P
290 Hammerlund Variable Capacitor 4-55pf 800v (Pull)
In Stock
- Capacitance: 4-55pf
- Total Plates: 14
- Peak Volts: 800v
- 15/16" long (body) x 1-5/8" wide x 1-1/4" high
- Shaft Diameter: 1/4" Round
Clean Used * No longer available for export
MFR: Hammerlund
SKU: 4-55-800-HAM-P
MC-50-S Hammarlund Variable Capacitor 7-50pf 1.5Kv (Pull)
In Stock
Sections: Single
Min/Max Cap Pf: 7-50
Total Plates: 7
Plate Spacing: 0.025"
Peak Volts: 1.5Kv
L x W x H: 1-9/32" x 1-11/16" x 1-1/4"
Shaft Diameter: 1/4" Round
Used * No longer available for export
MFR: Hammarlund
SKU: MC50S-P
NOTE: small crack in ceramic base
MCD-140-M Hammarlund Dual Section Variable Capacitor 8-150pf 800v (Pull)
In Stock
Sections: Double
Min/Max Cap Pf: 8- 150
Total Plates: 19 x 2 sections
Plate Spacing: - 0.0245"
Peak Volts: 800v
L x W x H: 3" x 1 5/8" x 1-3/4"
Shaft Diameter: 1/4" Round
Used * No longer available for export
MFR: Hammarlund
SKU: MCD-140-M-P

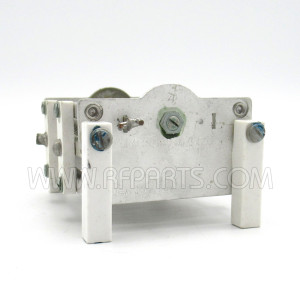

T-7660448-1 Hammarlund Variable Capacitor 20-115pf 1.2Kv (Pull)
In Stock
Capacitance: 20-115pf
Total Plates: 27
Plate Spacing: - 0.085"
Peak Volts: - 1.5Kv
L x W x H: 4-11/16" x 2-13/16" x 1-3/4"
Shaft Diameter: 1/4" Round
Used * No longer available for export
MFR: Hammarlund
SKU: T-7660448-1-P

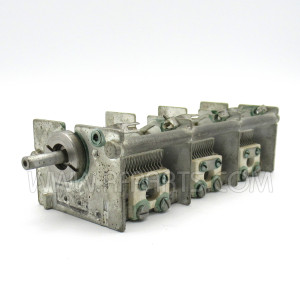

15-250 Hammarlund 3 Section Variable Capacitor 15-250pf 1.5Kv (Pull)
In Stock
Sections: 3
Min/Max Cap Pf: 15-250
Total Plates: 99
Plate Spacing: - 0.03"
Peak Volts: - 1.5Kv
L x W x H: 7-1/2" x 3-1/4" x 1-7/8"
Shaft Diameter: 1/4" Round
Used * No longer available for export
MFR: Hammarlund
SKU:

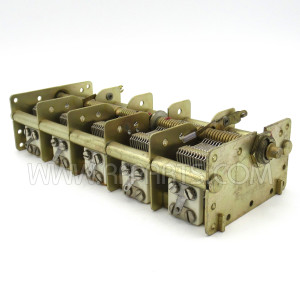

15-99-611A TRW 5 Section Variable Capacitor 1.5Kv 17-55pf (Pull)
In Stock
Plates: 31 plates per section
Section 1-3:
17-55pf
Section 4-5:
17-42pf
Peak Voltage: 1.5Kv
MFR #: 817390
Used * No longer available for export
MFR: TRW
SKU: 1599611A-TRW

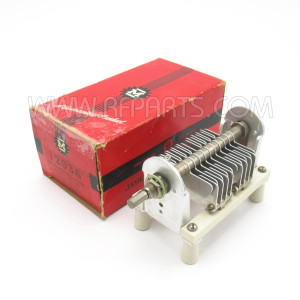

12036 Millen Variable Capacitor 3-35pf (x2) 1500v (NOS)
In Stock
- Sections: 2
- Capacitance: 3-35pf per section
- Voltage: 1500v
MFR: MiIlen
SKU: 12036
