MRF100 Series

MRF163, MRF162, MRF171, MRF1001A, MRF1015MB, MRF1090MA, MRF154MP, MRF166C-MOT, MRF138, MRF1150MB Transistor, 12 volt, MRF157-MOT Transistor, Motorola, 600 watt, 50v, 80 MHz, MRF140-MOT Transistor, 150 watt, 28v, 150 MHz, Motorola, MRF175GV-MA Transistor, 200 watt, 28v, 225 MHz, M/A-COM, MRF151-MOT Transistor, 50 volt motorola, MRF134-MOT Transistor, 28 volt motorola, MRF173-MA Transistor, 80 watt, 28v, 175 MHz, M/A-COM

List  Grid

per page
Set Descending Direction

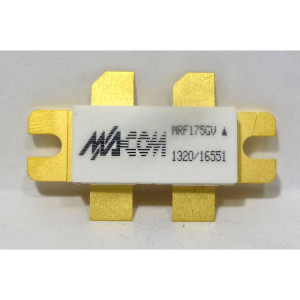

  1. MRF175GV M/A-COM Transistor 200 watt 28v 225 MHz (NOS)

    MRF175GV M/A-COM Transistor 200 watt 28v 225 MHz (NOS)

    $215.91

    Designed for broadband commercial and military applications using push pull circuits at frequencies to 500 MHz. The high power, high gain and broadband performance of these devices makes possible solid state transmitters for FM broadcast or TV channel frequency bands, N–Channel enhancement mode

    • Guaranteed performance: MRF175GV @ 28 V, 225 MHz (“V” Suffix),
    • Output power — 200 W, Power gain — 14 dB typical, Efficiency — 65% typical
    • 100% ruggedness tested at rated output power
    • Low thermal resistance
    • Low Crss — 20 pF typical @ VDS = 28 V

    New Old Stock * No longer available for export
    MFR: M/A-COM
    SKU: MRF175GV-MA


  2. MRF140 Motorola Transistor 150 Watt 28V 150 MHz (NOS)

    MRF140 Motorola Transistor 150 Watt 28V 150 MHz (NOS)

    $145.91

    Designed primarily for linear large–signal output stages up to 150 MHz frequency range. N–Channel enhancement mode

    • Specified 28 volts, 30 MHz characteristics Output power = 150 watts Power gain = 15 dB (Typ.) Efficiency = 40% (Typ.)
    • Superior high order IMD
    • IMD(d3) (150 W PEP): –30 dB (Typ.)
    • IMD(d11) (150 W PEP): –60 dB (Typ.)
    • 100% tested for load mismatch at all phase angles with 30:1 VSWR

    New Old Stock * No longer available for export
    MFR: Motorola
    SKU: MRF140-MOT

    Made in the USA

  3. MRF140 Motorola Transistor 150W 28V 150 MHz Matched Pair (2) (NOS)

    MRF140 Motorola Transistor 150W 28V 150 MHz Matched Pair (2) (NOS)

    $289.91

    Designed primarily for linear large–signal output stages up to 150 MHz frequency range. N–Channel enhancement mode

    • Specified 28 volts, 30 MHz characteristics Output power = 150 watts Power gain = 15 dB (Typ.) Efficiency = 40% (Typ.)
    • Superior high order IMD
    • IMD(d3) (150 W PEP): –30 dB (Typ.)
    • IMD(d11) (150 W PEP): –60 dB (Typ.)
    • 100% tested for load mismatch at all phase angles with 30:1 VSWR

    New Old Stock * No longer available for export
    MFR: Motorola
    SKU: MRF140-MP-MOT

    Made in the USA
  4. MRF141 Motorola Transistor RF Power FET 150W 175MHz 28V (NOS)

    MRF141 Motorola Transistor RF Power FET 150W 175MHz 28V (NOS)

    $79.91

    Transistor RF Power FET 150W 175MHz 28V
    New Old Stock * No longer available for export
    MFR: Motorola
    SKU: MFR141-MOT

  5. MRF176GV Motorola Transistor RF MOSFET 200/150W 500MHz 50V (NOS)

    MRF176GV Motorola Transistor RF MOSFET 200/150W 500MHz 50V (NOS)

    $199.91

    Designed for broadband commercial and military applications using push pull circuits at frequencies to 500 MHz. The high power, high gain and broadband performance of these devices makes possible solid state transmitters for FM broadcast or TV channel frequency bands, N–Channel enhancement mode

    New Old Stock * No longer available for export
    MFR: Motorola
    SKU: MRF176GV-MOT

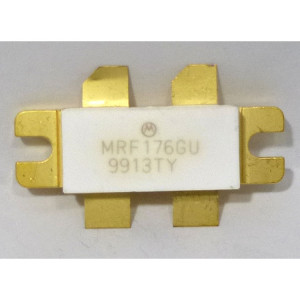

  6. MRF176GU Motorola Transistor RF MOSFET 200/150W 500MHz 50V (NOS)

    MRF176GU Motorola Transistor RF MOSFET 200/150W 500MHz 50V (NOS)

    $199.91

    Designed for broadband commercial and military applications using push pull circuits at frequencies to 500 MHz. The high power, high gain and broadband performance of these devices makes possible solid state transmitters for FM broadcast or TV channel frequency bands, N–Channel enhancement mode

    New Old Stock * No longer available for export
    MFR: Motorola
    SKU: MRF176GU-MOT

  7. MRF175GU Motorola Transistor 150 Watt 28V 400 MHz (NOS)

    MRF175GU Motorola Transistor 150 Watt 28V 400 MHz (NOS)

    $191.91

    Designed for broadband commercial and military applications using push pull circuits at frequencies to 500 MHz. The high power, high gain and broadband performance of these devices makes possible solid state transmitters for FM broadcast or TV channel frequency bands, N–Channel enhancement mode

    • Guaranteed performance: @ 28 V, 225 MHz (“V” Suffix), Output power — 200 W, Power gain — 14 dB typ, Efficiency — 65% typ`
    • 100% ruggedness tested at rated output power
    • Low thermal resistance
    • Low Crss — 20 pF typ @ VDS = 28 V

    New Old Stock * No longer available for export
    MFR: MRF175GU-MOT

  8. MRF173CQ Motorola RF MOSFET Transistor 80W 175MHz 28V (NOS)

    MRF173CQ Motorola RF MOSFET Transistor 80W 175MHz 28V (NOS)

    $74.91

    Designed for broadband commercial and military applications up to 200 MHz frequency range. The high–power, high–gain and broadband performance of this device makes possible solid state transmitters for FM broadcast or TV channel frequency bands, N–Channel enhancement mode MOSFET

    New Old Stock * No longer available for export
    MFR: Motorola
    SKU: MRF173CQ-MOT

  9. MRF164W Motorola Power Field Effect Transistor 28 Volt (NOS)

    MRF164W Motorola Power Field Effect Transistor 28 Volt (NOS)

    $69.91

    Designed primarily for wideband large-scale output and driver stages to 500MHz.

    • Guaranteed Performance at 400 MHZ, 28 Vdc
    • Output Power: 20 W
    • Minimum Gain: 15dB
    • Push-Pull Configuration Reduces Even Bumbered Harmonics
    • Excellent Thermal Stability, suited for Class A Operation
    • Allows Manual Gain Control, ALC and Modulation Techniques
    • 30:1 VSWR

    New Old Stock * No longer available for export
    MFR: Motorola
    SKU: MRF164W

  10. MRF156 Motorola Transistor (NOS)

    MRF156 Motorola Transistor (NOS)

    $399.91

    New Old Stock * No longer available for export
    MFR: Motorola
    SKU: MRF156
