Mounts above chassis through 2.250" (51 .155mm) diameter hole with three clips drilled for 6-32 screws. Has provision for mounting socket skirt directly to a 1.625" (41.28mm) O.D. outer conductor of a coaxial type line.
Use for 4CX250B, 1W300B, 4CX250F, 4CX350A, 4C350F, 4X25B, 4W250F, 7580
INCLUDES 2700 pF SCREEN GRID BY-PASS CAPACITOR
Housing: Brass per QQ-B-6260, .0001" silver plated
Contacts: Beryllium copper per QQ-C-533, .0001" silver plated
• Cathode terminals insulated or grounded
• Positive, low resistance contact between tube pins and socket contacts

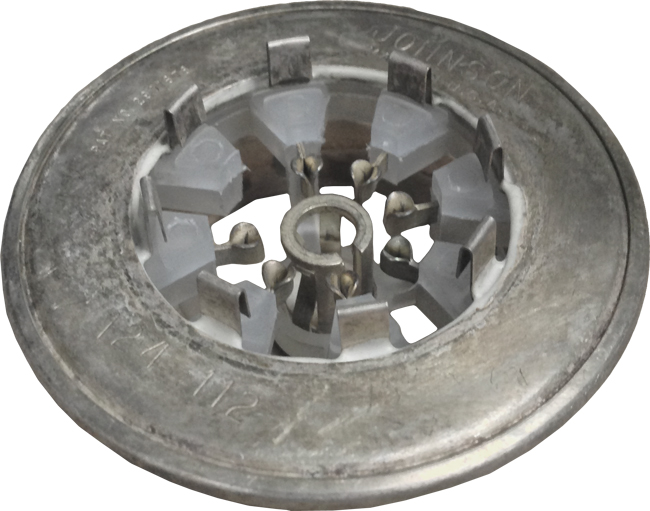

MFG: Johnson tube socket
