Relays

Please choose from the following RELAY Sub-Catagory choices:

TOHTSU COAXIAL RELAYS

TOHTSU COAXIAL RELAYS

COAX RELAYS (VARIOUS MANUFACTURERS)

COAXIAL RELAYS (VARIOUS MAN.)

HIGH CURRENT POWER RELAYS

HIGH CURRENT RELAYS



R10 POTTER & BRUMFIELD

R10 POTTER & BRUMFIELD RELAYS

VACUUM RELAYS

VACUUM RELAYS

 OPEN FRAME

MISC. SPECIAL RELAYS

 ENCLOSED

ENCLOSED

 PRINTED CIRCUIT BOARD (PCB)

PRINTED CIRCUIT BOARD (PCB)

TERMINAL

TERMINAL

RELAY SOCKETS

RELAY SOCKETS

HIGH CURRENT TIME DELAY RELAY

 HIGH CURRENT POWER RELAYS

MISC. SPECIAL RELAYS

MISC SPECIAL RELAYS





 AMPERITE THERMAL RELAYS

 AMPERITE RELAYS



List  Grid

per page
Set Descending Direction

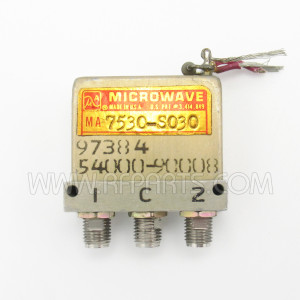

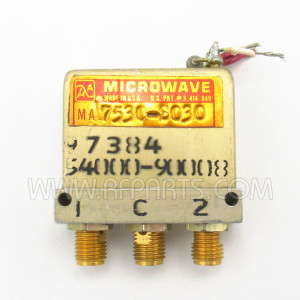

  1. MA7530-S030 Microwave Associates SPDT SMA Female Coaxial Relay 28vdc (Pull)

    MA7530-S030 Microwave Associates SPDT SMA Female Coaxial Relay 28vdc (Pull)

    $23.91

    • Nickel Plated Connectors

    Used * No longer available for export
    MFR: Microwve Associates
    SKU: MA7530-S030-N-P

    Made in the USA

  2. W128X-15 Magnecraft Vintage UHF Coaxial Relay 24VDC (Pull)

    W128X-15 Magnecraft Vintage UHF Coaxial Relay 24VDC (Pull)

    $89.91

    • 400 Ohms
    • 24VDC

    Clean Used * No longer available for export
    MFR: Magnecraft Electronics Company
    SKU: W128X-15-P

    Made in the USA

  3. 318-11165-3 Amphenol BNC SPDT Coaxial Relay 26VDC (Pull)

    318-11165-3 Amphenol BNC SPDT Coaxial Relay 26VDC (Pull)

    $49.91

    • Frequency: 2000MHz
    • RF Power: 100 Watts
    • Coil Ohms: 280

    Used * No longer available for export
    MFR: Amphenol
    SKU: 318-11165-3-P

    Made in the USA
  4. 321-11064-3 Amphenol BNC DPDT Coaxial Relay 26VDC (Pull)

    321-11064-3 Amphenol BNC DPDT Coaxial Relay 26VDC (Pull)

    $164.91

    • Impedance: 50-Ohms
    • Coil Voltage: 26 VDC
    • DC-1000MHz

    Used * No longer available for export
    MFR: Amphenol
    SKU: 321-11064-2-P

  5. B5F-330100/P Charter Engineering SPDT Coaxial Relay 24VDC (Pull)

    B5F-330100/P Charter Engineering SPDT Coaxial Relay 24VDC (Pull)

    $119.91

    Switch Series: B5 - SPDT Type N
    Actuator: Failsafe
    Frequency Bandwidth: DC - 12.4 GHz
    Voltage: 20 - 30 VDC (24.0 V nominal)
    Power Interface: Solder Terminal (Top of Switch)

    These relays were pulled from equipment, have cosmetic dents, have been tested and meet specifications.
    Used * No longer available for export
    MFR: Charter Engineering
    SKU: B5F-330100/P-DENT-P

  6. B5F-330100/P Charter Engineering SPDT Coaxial Relay 24VDC (Pull)

    B5F-330100/P Charter Engineering SPDT Coaxial Relay 24VDC (Pull)

    $129.91

    Switch Series: B5 - SPDT Type N
    Actuator: Failsafe
    Frequency Bandwidth: DC - 12.4 GHz
    Voltage: 20 - 30 VDC (24.0 V nominal)
    Common Polarity: Not required
    Power Interface: Solder Terminal (Top of Switch)
    Options: No other options required
    Intermodulation: Standard Switch
    Special Options: High Temp, High Power Connector

    These relays were pulled from equipment, have a scuffed suface, have been tested and meet specifications.
    Used * No longer available for export
    MFR: Charter Engineering
    SKU: B5F-330100/P-SCUFF-P


  7. HVS-3 HYVAC Vintage SPDT 20Kv Vacuum Relay (NOS)

    HVS-3 HYVAC Vintage SPDT 20Kv Vacuum Relay (NOS)

    $149.91

    • Operating Voltage: 20Kv
    • Continuous current: 10 amps RMS
    • Coil Resistance ± 10%: 1500 Ohms
    • Coil Voltage (nominal): 115Vdc

    New Old Stock * No longer available for export
    MFR: High Vacuum Electronics, Inc.
    SKU: HVS-3

    Made in the USA
  8. 64-2301 Dow-Key 28vdc SPDT Type-N Transfer Failsafe Relay (Pull)

    64-2301 Dow-Key 28vdc SPDT Type-N Transfer Failsafe Relay (Pull)

    $84.91

    The Dow-Key 64 Series coaxial relays privide an enclosed actuator for use in environments where dust or moiture may be encountered.
    Typical Applications: ILS AIR Traffic Control Equipment, and UHF/UHF Standby Transmitters and Receivers.

    • Operating Voltage: 28vdc
    • Coil Current: (Nominal): 28Vdc - 112 mA

    Used * No longer available for export
    MFR: Dow-Key Microwave
    SKU: 64-2301-P

  9. Dow-Key 110Vac DPDT UHF By-Pass Switch (Pull)

    Dow-Key 110Vac DPDT UHF By-Pass Switch (Pull)

    $98.91

    • Double Pull Double Throw UHF Female
    • Voltage: 110Vac
    • Includes attached cords intalled by previous owner

    Used * No longer available for export
    MFR: Dow-Key Microwave
    SKU: DK-110VAC-DPDT-P


  10. 60-210442 Dow-Key 6V DC SPDT UHF Coaxial Relay with DPDT Auxiliary Contacts (Pull)

    60-210442 Dow-Key 6V DC SPDT UHF Coaxial Relay with DPDT Auxiliary Contacts (Pull)

    $89.91

    Voltage: 6vdc
    Low Losses: Pure Silver Contacts.
    Used * No longer available for export
    MFR: Dow-Key Microwave
    SKU: 60-210442-P

    Made in the USA

Items 1 to 10 of 297 total
