  1. 260B-230142 Dow-Key 26.5vdc DPDT Type-N By-Pass Switch (NOS)

    260B-230142 Dow-Key 26.5vdc DPDT Type-N By-Pass Switch (NOS)

    $186.91

    • Voltage: 26.5vdc
    • Coil Current: 26.5Vdc -110 mA
    • Operate Time: 25 mS Maximum

    New Old Stock * No longer available for export
    MFR: Dow-Key Microwave
    SKU: 260B-230142

  2. 60-2303 Dow-Key 28vdc SPDT TNC Switch (Pull)

    60-2303 Dow-Key 28vdc SPDT TNC Switch (Pull)

    $112.91

    • Operating Voltage: 26vdc
    • Coil Current: (Nominal): 26Vdc - 108 mA
    • Operate TIme: 20 mS maximum
    • Operating Temperature: 0°C to +65°C

    Used * No longer available for export
    MFR: Dow-Key Microwave
    SKU: 60-2303-P

  3. 60-2301 Dow-Key 28vdc SPDT Type-N Switch (Pull)

    60-2301 Dow-Key 28vdc SPDT Type-N Switch (Pull)

    $112.91

    • Operating Voltage: 28vdc (24-32 Vdc across temperature range) 26.5 Vdc marked on switch
    • Coil Current: (Nominal): 28Vdc - 108 mA
    • Operate TIme: 20 mS maximum

    Used * No longer available for export
    MFR: Dow-Key Microwave
    SKU: 60-2301-P

  4. 60-230142 Dow-Key 28vdc SPDT Type-N Switch with DPDT Auxiliary Contacts (Pull)

    60-230142 Dow-Key 28vdc SPDT Type-N Switch with DPDT Auxiliary Contacts (Pull)

    $112.91

    • Operating Voltage: 28vdc (24-32 Vdc across temperature range) 26.5 Vdc marked on switch
    • Coil Current: (Nominal): 28Vdc - 108 mA
    • Operate TIme: 20 mS maximum

    Used * No longer available for export
    MFR: Dow-Key Microwave
    SKU: 60-230142-P

  5. 410-0305-00 Arrowsmith BNC SPDT Coaxial Relay 26VDC (NOS)

    410-0305-00 Arrowsmith BNC SPDT Coaxial Relay 26VDC (NOS)

    $134.91

    • Made for Collins Radio
    • Date Code: 9021

    New Old Stock * No longer available for export
    MFR: Arrowsmith
    SKU: 410-0305-00


  6. 63-103 Dow-Key 12vdc SPDT Failsafe Coax Relay with Bracket and Power Cord (Pull)

    63-103 Dow-Key 12vdc SPDT Failsafe Coax Relay with Bracket and Power Cord (Pull)

    $74.91

    The Dow-Key 63 Series SPDT Failsafe Relay provides an enclosed actuator for
    use in environments where dust or moisture may be encountered.

    Connector Type: N
    Operating Voltage: 12Vdc, 28 Vdc
    Coil Current (Nominal): 12Vdc 255mA
                                          28Vdc 112mA
    Operate Time: 20 Ms maximum
    Operating Temperature: -25oC to +65oC
    Mechanical Life, Cycles: 1 x 106 minimum
    Nominal Weight: 6.0 oz., (170g.)

    Used * No longer available for export
    MFR: Dow-Key Microwave
    SKU: 63-103-BRKT-CORD-P

    Made in the USA

  7. MA7530-S030 Microwave Associates SPDT SMA Female Coaxial Relay 28vdc (Pull)

    MA7530-S030 Microwave Associates SPDT SMA Female Coaxial Relay 28vdc (Pull)

    $24.91

    • Gold Plated Connectors

    Used * No longer available for export
    MFR: Microwve Associates
    SKU: MA7530-S030-G-P

    Made in the USA
  8. 360-11897-21 Joslyn DPDT 28VDC TNC Female Relay DC-6GHz (NOS)

    360-11897-21 Joslyn DPDT 28VDC TNC Female Relay DC-6GHz (NOS)

    $98.91

    • Custom Built Relay from 2 SPDT relays
    • Minor dents and scratches

    New Old Stock  * No longer available for export
    MFR: Joslyn
    SKU: 360-11897-21-JOS

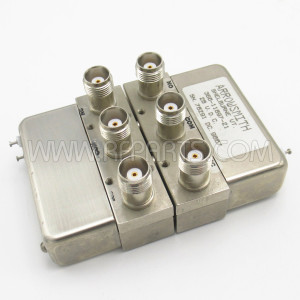

  9. 360-11897-21 Arrowsmith DPDT 28VDC TNC Female Relay DC-6GHz (NOS)

    360-11897-21 Arrowsmith DPDT 28VDC TNC Female Relay DC-6GHz (NOS)

    $98.91

    • Custom Built Relay from 2 SPDT relays

    New Old Stock  * No longer available for export
    MFR: Arrowsmith
    SKU: 360-11897-21-ARROW

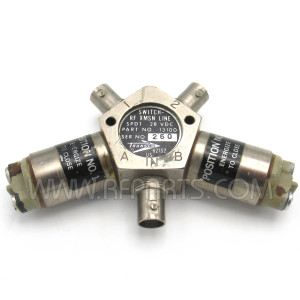

  10. 13100 Transco SPDT "Y" BNC Female Relay 28Vdc DC-11GHz (Pull)

    13100 Transco SPDT "Y" BNC Female Relay 28Vdc DC-11GHz (Pull)

    $114.91

    • 500w @ 1GHz (10kw Peak)

    Used * No longer available for export
    MFR: Transco
    SKU: 13100-TRANSCO

    Data Sheet

    Made in the USA

Items 11 to 20 of 297 total
