High Voltage / Misc
| High Voltage Doorknob Caps Ideal for RF coupling & bypass and HV power supplies. |
||||
| Part Number | Value | Size (W x Dia.) | ||
|---|---|---|---|---|
|
Manufactured by Erie & muRata |
||||
| 281M | 280pF, 20 KV | 0.8" x 0.8" | ||
| 252Z | 2500pF, 30 KV | 1.24" x 2.04" | ||
| 272K | 2700pf, 30KV | 1.03" x 2.34" | ||
| 941M Limited Quantity |
940pF, 30KV | 0.95" x 1.5" | ||
|
Manufactured by Sprague - Ceramite |
||||
| Special Purchase! 715C651Z18DK |
650pF, 18 KV | 1.10" x 0.95 | ||

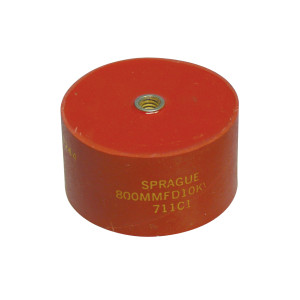

| 711C1800-10 | 800pF, 10 KV | 1.1875" x 2.125" | ||
| 715C921X40DK | 920pF, 40 KV | 1.563" x 1.5" | ||
| 715C362Z30DK Limited Quantity |
3600pF, 30 KV | 1.3125" x 2.375" | ||
| 720C381Z40DK Limited Quantity |
380pF, 40 KV | 1.5" x 1.25 " | ||
| 720C221X40DK Limited Quantity |
220pF, 40 KV | 1.5" x 1.0 " | ||
| 720C601X40DK Limited Quantity |
600pF, 40 KV | 1.5" x 1.5 " | ||
| 715C241X30DK | 240pF, 30 KV | 1.365" 1.065" | ||
| 715C461X30DK Limited Quantity |
460pF, 30 KV | 1.25" x 1.0 " | ||
| Part Number | Value | Size (W x Dia.) | ||
|
Manufactured by Sprague - TDK - KBN
|
||||
| 4700-5 | 4700pF, 5 K | 1.25" x 1.5" | ||
| 2200-10KV | 10 KV, 20% | 0.7" x 1.62" | ||

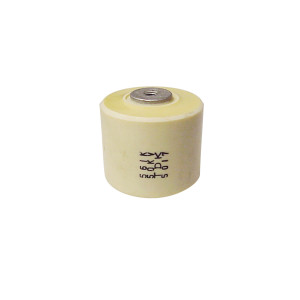

| 561K | 560pF, 5 KV | 0.5" x 2.0" | ||
|
Manufactured by Sprague
|
||||
| 1500-15 Limited Quantity |
1500pF, 15 KV | 1.0" x 1.5" | ||
|
Manufactured by HEC
|
||||

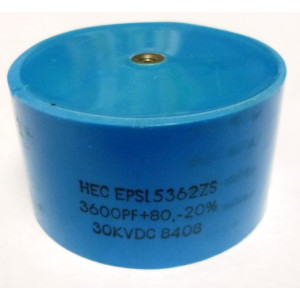

| EPSL5362ZS | 3600pF, 30 KV | 1.61" x 2.37" | ||
| CRL857-200 | 200pF, 7.5 KV | 10% LARGE SIZE N-750 MAT. |
||
| CRL857-200P Clean Pull Out |
200pF, 7.5 KV | 10% LARGE SIZE N-750 MAT. |
||
| SPHT1600KK | 60pF, 13 KV | 1.2" x 2.125" | ||
|
Manufactured by CRL
|
||||
| C500-12.5KV | 500pF, 12.5 KV | 0.625" x 1.0 " | ||
| Part Number | Value | Size (W x Dia.) | ||
|
Manufactured by Vishay / Draloric - Germany
|
||||
| PE100-200-15 | 200pF, 15 KV | 1.575" x 3.9" 5%, R42 Ceramic |
||
| PE100-300-13 | 300pF, 13 KV | 1.575" x 3.9" 5%, R42 Ceramic |
||
| PS55-5 | 500pF, 5 KV | 2.225" x 0.5" | ||
| PE100-800-14 | 800pF, 14 KV | 1.575" x 3.9" 5%, R85 Ceramic |
||
|
Various manufacturers; VERY LIMITED STOCK. CLEAN - REMOVED FROM EQUIPMENT
|
||||
| 570075-10P | 75pF, 10 KV | |||
| 570033-15P | 33pF, 15 KV | 1.63" x 1.25" | ||
| 590060-30 | 60pF, 30 KV | 0.76" x 3.16" | ||
| 100-10 | 100pF, 10 KV, 9 KVAP | 2.85" x 1.96" | ||
| 200-5.5 | 200pF, 5.5 KV | 1.18" x 0.58" | ||
| 200-14 | 200pF, 14 KV | 1.65" x 3.26" | ||
| 590251-20 | 250pF, 20 KV | 2.55" x 1.80" | ||
| 350-5 | 350pF, 5 KV |
2.55" x .80" |
||
| 470-15 | 470pF, 15 KV |
0.955" x 2.52" |
||
| 470-16 | 470pF, 16 KV |
0.81" x 1.0" |
||
| 470-20 | 470pf, 20 KV, 60 KA |
3.55" x 1.73" |
||
| 1000-4 | 1000pF, 4 KV, 30 KA | 2.58" x 0.6" | ||
| 1000-6 | 1000pf, 6KV, 40 KA | 2.95" x 0.65 | ||

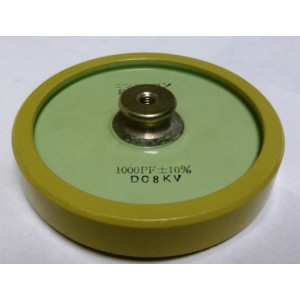

| 1000-8 | 1000pF, 8 KV | 1.1" x 3.55" | ||
| 1000-12 | 1000pF, 12 KV, 90KVAP | 4.965" x 0.85" | ||
| 1000-18 | 1000pF, 18 KV, 90KVAP | 5.5" x .2.45 | ||
| 1500-15 | 1500PF, 15 KV, 90 KVAP | 5.0" X .89 | ||
| 2200-4 | 2200pF, 4 KV, 50 KVAP | 2.58" x 0.6" | ||
| 2210-10 | 2200pf, 10 KV | 1.6" x 0.70" | ||
| 3300-10 | 3300pF, 10 KV | 0.686" x 1.97" | ||
| 3000-12 | 3000pF, 12 KV | 1.75" x 5.5" | ||
| Limited to stock on hand. Call for pricing. P=Clean Pullout |
||||
-

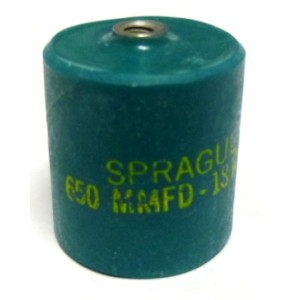

715C651Z18DK Sprague Doorknob Capacitor 650pf 18KV (NOS)
$12.91 As low as: $10.91 -

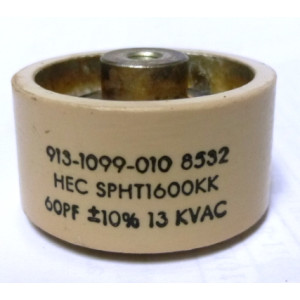

SPHT1600KK High Energy Corporation (HEC) Doorknob Capacitor 60pf 13KV 10% (NOS)
$47.91 -
PE100-300-13 Vishay/Draloric Plate Capacitor 300pf 13kv 10% (NOS)
$524.91 -
PE100-200-15 Vishay/Draloric Plate Capacitor 200pf 15kvp 5% (Pull)
$249.91 -

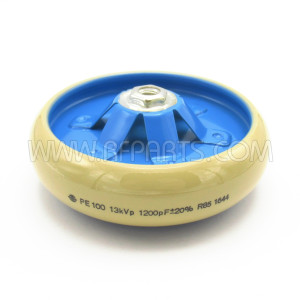

PE100 Vishay Plate Capacitor 1200pf 13kvp 20% (NOS/NIB)
$394.91 -
-
3900-6 Sprague Doorknob Capacitor, 3900pf 6kv (Pull)
$34.95 -
-
-
