Type 30 series
LARGE TYPE 30 Series Trimmer
Voltage Rating: 250VDC/500VDC TEST
DATA SHEET
Case Measurement: 7/8" Wide x 15/16" Long
| Part Number | Min/Max | ||
|---|---|---|---|
| 302 | 15-130 | use 302M | |

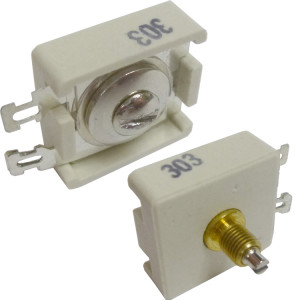

| 303 | 65-340 | ||
| 304 | 115-550 | use 304M | |
| 305 | 190-760 | use 305M | |
| 306 | 275-970 | use 306M | |
| 309 | 550-1600 | use 309M | |
| 310 | 650-1890 | use 310M | |
| 311 | 780-2110 | use 311M | |
| 314 | 1300-1890 | ||
| 315 | 1400-3055 | ||
30 Series Data Sheet
305 Arco Mica Trimmer Compression Capacitor 190-760 PF
In Stock

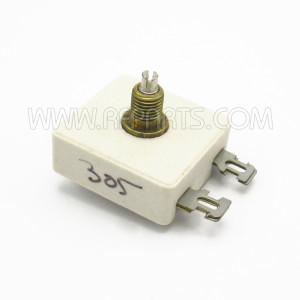

305 Arco Mica Trimmer Compression Capacitor 190-760 PF
New Old Stock * No longer available for export
MFR: Arco
SKU: 305

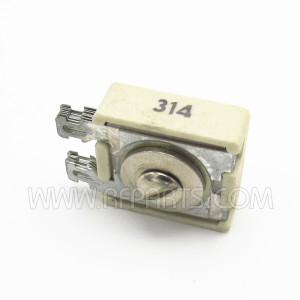

314 Arco Mica Compression Trimmer Capacitor 1300-1890 pF (NOS)
In Stock
Mica Compression Trimmer Capacitor 1300-1890pF 30 Series
New Old Stock * No longer available for export
MFR: Arco
SKU: 314-ARCO

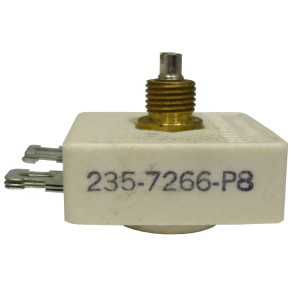

235-7266-P8 Trimmer Capacitor Compression Mica 175-1100pf (Isolater)
In Stock
235-7266-P8 Trimmer Capacitor, Compression Mica, 175-1100pF (Isolater), 30 Series, No longer available for Export, (NOS)

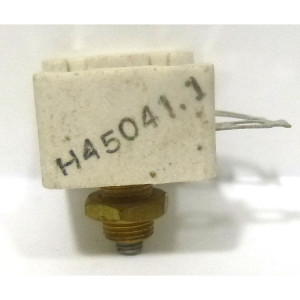

H45041-1 Sickles Company Compression Mica Trimmer Capacitor 5-78 pf (NOS)
In Stock
Size: 0.9" Long x 0.765" Wide (Body) x 0.9" High
New Old Stock * No longer available for export
MFR: Sickles Company
SKU:SD3004

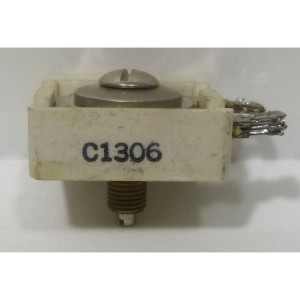

C1306-P Compression Mica Trimmer 210-850 pf (Pull)
In Stock
C1306-P Trimmer Capacitor, Compression Mica, 210-850pf
Used clean * No longer available for export
SKU: C1306-P

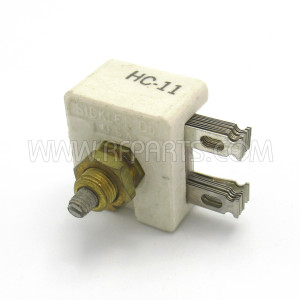

HC11 Sickles Compression Mica Trimmer 650-3300pf
In Stock
Size: 0.9" Long x 0.765" Wide (Body) x 0.95" High
New Old Stock * No longer available for export
MFR: Sickles Company
SKU: HC11
J314 Arco Trimmer Capacitor 650-1800pf (NOS)
In Stock
- Tunning Shaft: 1-19/32" long x 1/8" diameter
- Shaft End: D-shape 5/16" long
New Old Stock * No longer available for export
MFR: Arco
SKU: J314
