1 to 200 pf Max
1 to 200 pf Max
This category features capacitors with a maximum capacitance value ranging from 1 picofarad to 200 picofarads. These components are essential for a variety of electronic applications, providing precise capacitance values for filtering and timing circuits.
FM2B Mounting Flange for Vacuum Relays/Capacitors (Pull)
In Stock
Mounting flange for Jennings style Vacuum Variables with 2" diameter housing. 6 mounting holes and single lock screw
- Size: ID 2.030"
- Height: 0.76"
- Overall Diameter 3.25"
Used clean * No longer available for export
SKU: FM2B-P
Picture for reference only
VAC-40 Jennings Variable Vacuum Capacitor 10-40 pf 20KV (Pull)
In Stock
Capacitance: 10-40pf
Max voltage: 20KV
Used
MFR: Jennings
SKU: VAC-40-P
GCS-90-10S Jennings Variable Vacuum Capacitor 5-90pF 10KV (NOS)
Out of Stock
Rated Capacitance: 5-90 pF
Peak Voltage: 10 KV
Current Amps (RMS) Maximum : 45 Amps
Used
MFR: Jennings
SKU: GCS-90-10S
CVDD-60-0015 Jennings Vacuum Variable Capacitor 15Kv 9-60pF (Pull)
In Stock
Rated Capacitance: 9-60 pF
Peak Voltage: 15 KV
Current Amps (RMS) Maximum : 55 Amps
Used
MFR: Jennings
SKU: CVDD-60-0015-P
UCSL-80 Jennings Vacuum Variable Capacitor 17.5-80 pF 3Kv (NOS)
In Stock
Capacitance: 7.5-80pF
Peak Voltage: 3Kv
New Old Stock
MFR: Jennings
SKU: UCSL-80-NOS
CV1C-60E/20 Comet 20KV 7-60pf Variable Vacuum Capacitor (Pull)
In Stock
CV1C-60E/20 Comet 20KV 7-60pf Variable Vacuum Capacitor
Used Excellent Condition * No longer available for export
MFR: Comet
SKU: CV1C-60E/20
ECS-30-10S Jennings Variable Vacuum Capacitor 10kV 3-30pF (Pull)
In Stock
Capacitance 3-30pF
Voltage 10kV
Dimensions 1.450x1.180x4.127 inches
Shaft Size: .25
Used
MFR: Jennings
SKU: ECS-30-10S-P
JHC-75 Jennings / Western Electric Fixed Vacuum Capacitor 75pf 45Kv (NOS)
In Stock
- Capacitance: 75pf
- Voltage (Max): 45000v
New Old Stock
MFR: Jennings Radio
SKU: JHC-75

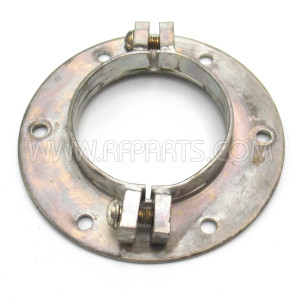

FM1C Mounting Flange for Vacuum Relays/Capacitors (Pull)
In Stock
Mounting flange for Jennings style Vacuum Variables with 2" diameter housing. 6 mounting holes and single lock screw
- Material: 0.062 Copper with Silver plating
- Inner Diameter: 1.81 in / 45.974
- Outer Diameter: 3.25 in / 82.550 mm
- Height: 0.50 in / 12.700 mm
Used * no longer available for export
SKU: FM1C-P
GCS-100 Jennings Vacuum Variable Capacitor 10Kv 20pf to 100pf (Used)
In Stock
- Peak Voltage: 10Kv
- Capacitance: 20pf to 100pf
Used
MFR: Jennings
SKU: GCS-100-20-100-P
