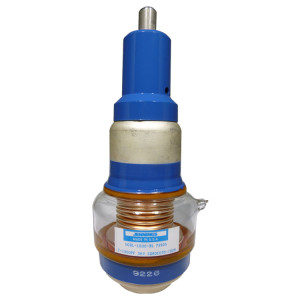

501 to 1000 pf Max

Rated Capacitance: 7-1000 pf
Peak Voltage: 3 KV
NSN #: 5910-01-217-8867

MFR: Jennings
SKU: UCSL-1000-3S

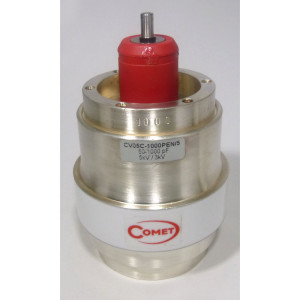

CV05C-1000PEN/5  Ceramic, Variable, Vacuum Capacitor, Basic Con Series , 50-1000pf, 5kv/3kv, (Round Slotted Shaft)
Used clean * No longer available for export
MFR: Comet
SKU: CV05C-1000PEN/5

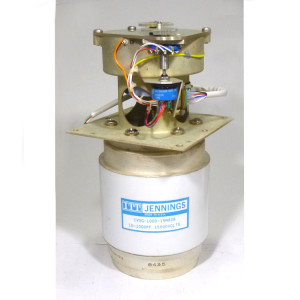

• With Gear Drive system and mounting bracket.
• Capacitance: 10-1000 pf
• Voltage Rating: 15 kv Test; 9 kv Working

Used
MFR: Jennings
SKU: CVDG-1000-15N808-P

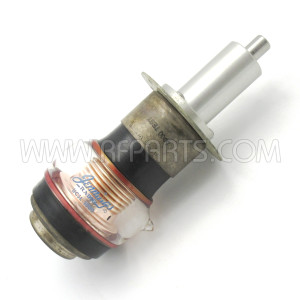

Rated Capacitance: 20-500 pF
Peak Voltage: 3 KV
Shaft Diameter: 1/4 inch

Used
MFR: Jennings
SKU: CVDD-500-P

Peak Voltage 7.5 Kv
Capacitance Range 20-1000pF

Used
MFR: Jennings
SKU: CVDA-1000-7.5N293-P

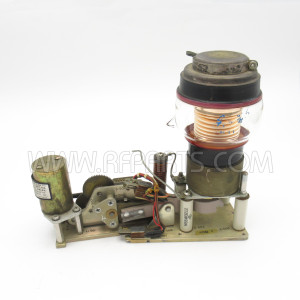

• Variable capacitor motor drive assembly removed from equipment.
• Comes with Jennings UCSL-1000 vacuum variable rated 7-1000pf at 3kv.
• Assembly has Gear driven motor drive mounted on aluminun plate and comes with DC Motor from Globe Industries (Part # C-25A-511).
• Motor spec:  27.5 volts nom., 6 amps nom., 1/100 hp at 15000 rpm min.
• Assembly is 8 inch long x 3 inch wide x 7 inch high.
• UCSL-1000 is mounted on 4 NS5W0212 ceramic standoff insulators.

Used
MFR: Jennings
SKU: UCSL-1000-3D345 Assembly-P

Removed from military equipment (Maybe Collins?)

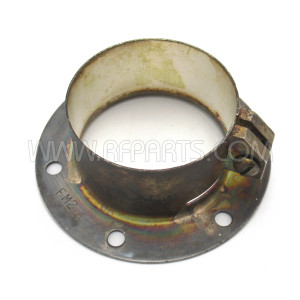

Mounting flange for Jennings style Vacuum Variables with 1.5" diameter housing.  6 mounting holes and single lock screw

• Material: 0.062 Copper with Silver plating
• Inner Diameter: 1.50 in / 38.100 mm
• Outer Diameter: 2.81 in / 71.374 mm
• Height: 0.53 in / 13.462 mm

Clean Used * no longer available for export
SKU: FM1H-P

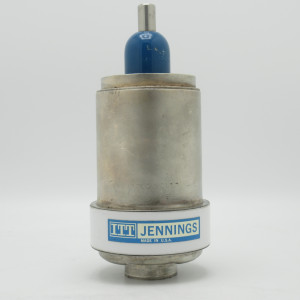

• Rated Capacitance: 10-1000 mmfd
• Peak Voltage: 5 KV
• Current Amps (RMS) Maximum 42 Amps

Used
MFR: Jennings
SKU: UCSL-1000-10-1000-P

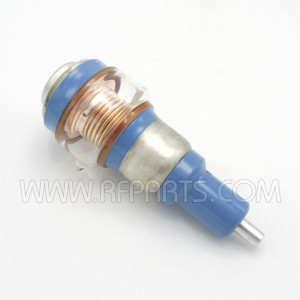

• Rated Capacitance: 20-1000 mmfd
• Peak Voltage: 5 KV

Used
MFR: Jennings
SKU: UCSL-20-1000-P
