1-1/4" Heliax

SPECIAL ORDER ITEM.  PLEASE ALLOW 8-10 WEEKS DELIVERY

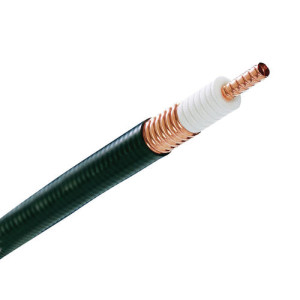

CommScope's HELIAX AVA5 and AVA6 C-band coaxial feeder cables deliver all the performance and value of the legacy HELIAX AVA products, with one important difference: Now, C-band has been enabled. Additionally, the AVA6 C-band coaxial feeder cable is uniquely optimized and tested to deliver a 0.5 dB gain in performance over AVA5-enabling MNOs to get even more from their C-band investment.

Jacket Material: PE
Outer Conductor Material: Corrugated copper
Dielectric Material: Foam PE
Flexibility: Standard
Inner Conductor Material: Corrugated copper tube
Jacket Color: Black
Cable Impedance 50 ohm ±1 ohm

All HELIAX coaxial cables are jacketed for direct burial or for corrosive environmental conditions. Standard jacketing material is weather-resistant polyethylene suitable for use in extreme climates.

MFR: CommScope® / Andrew
SKU: AVA6P-50-C
Sold by the Foot

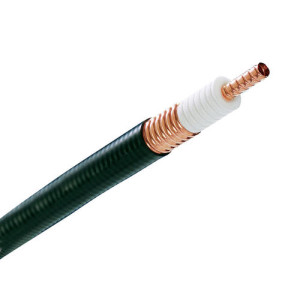

AVA6RK-50, HELIAX® Andrew Virtual Air™ Coaxial Cable, corrugated copper, 1-1/4 in, black , fire retardant polyolefin jacket, MFR: Andrew / Commscope

Sold by the Foot.

• Inner conductor
Material:  copper clad aluminum
Diameter, in (mm):  0.51 (13.0)
• Dielectric
Material: gas-injected cellular polyethylene
Diameter, in (mm): 1.32 (33.5)
• Outer conductor
Material:  corrugated copper tube
Diameter, in (mm): 1.42 (36.0)
• Outer sheath
Material: black polyethylene
Thickness, in (mm): 0.06 (1.5)
Diameter, in (mm): 1.54 (39.0)
For more info, please see the data sheet on file.

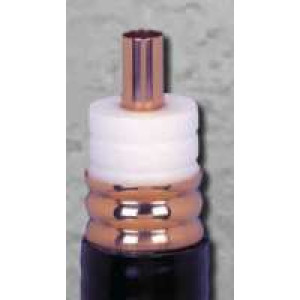

MFR: Eupen
SKU: EC6-50A

NOTE: SPECIAL ORDER CABLE. SHIPS DIRECT FROM FACTORY IN TEXAS. NORMALLY SHIPS IN 2-3 DAYS ARO. MINIMUM QUANTITY IS 50 FEET.
