MRF500 Series

MRF5812-APT, MRF553-MOT, MRF581A-APT, MRF571 Transistor, MRF5943G-APT Transistor, apt, MRF5812-MOT Ic, surface mount motorola, MRF555-APT Transistor, apt, MRF557-MOT NPN Silicon RF Low Power Transistor, 12.5 V, 870 MHz, 1.5 W, Motorola, MRF557-APT RF and Microwave Discrete Low Power Transistor, 12.5 V, 870 MHz, 1.5 W, APT, MRF555-MOT Transistor, 12 volt, , MRF515 NPN Silicon High Frequency Transistor, 12.5 V, 470 MHz, 0.75 W, Motorola

List  Grid

per page
Set Descending Direction
  1. MRF515 Motorola NPN Silicon High Frequency Transistor 12.5V 470MHz 0.75W (NOS)

    MRF515 Motorola NPN Silicon High Frequency Transistor 12.5V 470MHz 0.75W (NOS)

    $3.91

    Designed for 12.5 V UHF large-signal amplifier applications required in industrial equipment.

    • Specified 12.5 Volt, 470 MHz Characteristics: Output Power= 0.75 Watts, Minimum Gain= 8.0 dB, Efficiency= 50%
    • S Parameter Data from 100 MHz to 1.0 MHz

    New Old Stock * No longer available for export
    MFR: Motorola
    SKU: MRF515

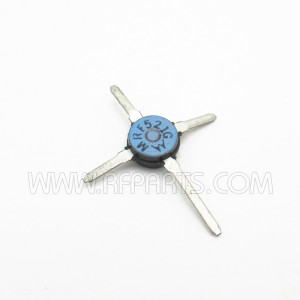

  2. MRF521 Motorola PNP Silicon High-Frequency Transistor (NOS)

    MRF521 Motorola PNP Silicon High-Frequency Transistor (NOS)

    $9.91

    Designed primarily for use in the high–gain, low–noise small–signal amplifiers for operation up to 3.5 GHz. Also usable in applications requiring fast switching times.

    New Old Stock * No longer available for export
    MFR: Motorola
    SKU: MRF521

  3. MRF531 Motorola NPN Silicon High-Frequency Transistor (NOS)

    MRF531 Motorola NPN Silicon High-Frequency Transistor (NOS)

    $4.91

    Designed for high voltage and high current fT switching applications. These devices are also ideal for CRT drivers.

    • High Current Gain–Bandwidth Product — fT = 800 MHz (Typ) at IC= 50 mAdc
    • High Collector Emitter Breakdown Voltage- V(BR)CEO= 100 Vdc (Min) at IC= 10 mAdc
    • Characterized with Safe Operating Area (SOA) Curves

    New Old Stock * No longer available for export
    MFR: Motorola
    SKU: MRF531

  4. MRF544 Motorola NPN Silicon High Frequency Transistor (NOS)

    MRF544 Motorola NPN Silicon High Frequency Transistor (NOS)

    $5.91

    Designed for high-frequency and medium and high resolution color video display monitors

    New Old Stock * No longer available for export
    MFR: Motorola
    SKU: MRF544-MOT

  5. MRF557 Motorola NPN Silicon RF Low Power Transistor 12.5V 870 MHz 1.5W (NOS)

    MRF557 Motorola NPN Silicon RF Low Power Transistor 12.5V 870 MHz 1.5W (NOS)

    $4.91

    Designed primarily for wideband large signal predriver stages in the 800 MHz frequency range.

    • Specified @ 12.5 V, 870 MHz Characteristics: Output Power = 1.5 W, Minimum Gain = 8.0 dB, Efficiency 60% (Typ)
    • Cost Effective PowerMacro Package
    • Electroless Tin Plated Leads for Improved Solderability

    New Old Stock * No longer available for export
    MFR: Motorola
    SKU: MRF557-MOT

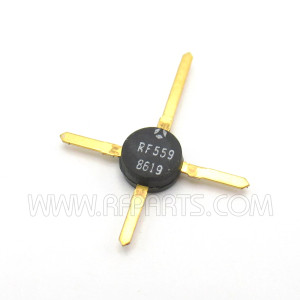

  6. MRF559 Motorola NPN Silicon High Frequency Transistor 0.5W 870 MHz 12V (NOS)

    MRF559 Motorola NPN Silicon High Frequency Transistor 0.5W 870 MHz 12V (NOS)

    $4.91

    • Output Power:  0.5 watt
    • Minimum Gain: 8.0 dB
    • Efficiency:  50%
    • Recommended as driver for MHW808 and MHW820 modules. 806-870 MHz Power Modules.

    New Old Stock * No longer available for export
    MFR: Motorola
    SKU: MRF559-MOT

  7. MRF571 Transistor (NOS)

    MRF571 Transistor (NOS)

    $7.91

    MRF571 Transistor (NOS)

    New Old Stock * No longer available for export
    MFR: Avnet Electronics
    SKU: MRF571

  8. MRF5812 Motorola NPN Silicon High-Frequency Transistor (NOS)

    MRF5812 Motorola NPN Silicon High-Frequency Transistor (NOS)

    $4.91

    Designed for high current low power amplifiers up to 1.0 GHz.

    • Low Noise (2dB @ 500MHz)
    • Low Intermodulation Distorion
    • High Gain
    • State-of-the-Art Technology
    • Excellent Dynamic Range
    • Fully Characterized
    • High Current-Gain Bandwidth Product

    New Old Stock * No longer available for export
    MFR: Motorola
    SKU: MRF5812-MOT

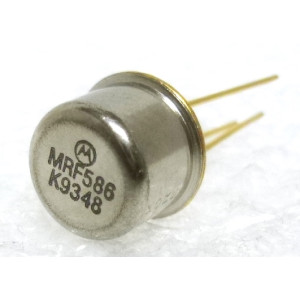

  9. MRF586 Motorola RF & Microwave Discrete Low Power NPN Silicon Transistor (NOS)

    MRF586 Motorola RF & Microwave Discrete Low Power NPN Silicon Transistor (NOS)

    $7.91

    Designed for VHF and UHF equipment. Applications include amplifier; pre-driver, driver, and output stages. Also suitable for oscillator and frequency-multiplier functions.

    • Ftau = 3.0 Ghz (typ) @ 300MHz, 14v, 90mA
    • GU max= 12.5dB (typ) @ 300 MHz, 15v, 40mA
    • |S21|2= 12.5dB (typ) @ 300 MHz, 15v, 40mA

    New Old Stock * No longer available for export
    MFR: Motorola
    SKU: MRF586-MOT

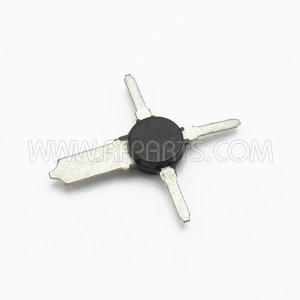

  10. MRF555 Motorola NPN Silicon RF Low Power Transistor 12.5 V 470 MHz 1.5 W (NOS)

    MRF555 Motorola NPN Silicon RF Low Power Transistor 12.5 V 470 MHz 1.5 W (NOS)

    $6.91

    Designed primarily for wideband large signal stages in the UHF frequency range.

    New Old Stock * No longer available for export
    MFR: Motorola
    SKU: MRF555-MOTO
