MRF200 Series

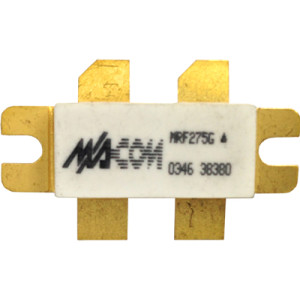

MRF275G M/A-COM RF Mosfet Transistor 150W 500MHz 28V
In Stock
Designed primarily for wideband large–signal output and driver stages from 100 – 500 MHz. N-Channel enhancement mode
- Guaranteed performance @ 500 MHz, 28 Vdc: Output power — 150 W, Power gain — 10 dB (min.), Efficiency — 50% (min.)
- 100% tested for load mismatch at all phase angles with VSWR 30:1
- Overall lower capacitance @ 28 V: Ciss — 135 pF, Coss — 140 pF, Crss — 17 pF
- Simplified AVC, ALC and modulation
- Typical data for power amplifiers in industrial and commercial applications:
- Typical performance @ 400 MHz, 28 Vdc: Output power — 150 W, Power gain — 12.5 dB, Efficiency — 60%
- Typical performance @ 225 MHz, 28 Vdc: Output power — 200 W, Power gain — 15 dB, Efficiency — 65%
MRF: M/A-COM
MRF275G-MA

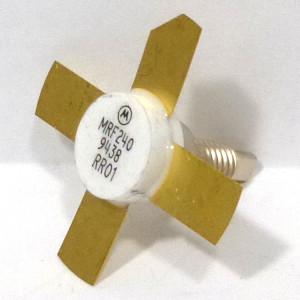

MRF240 Motorola NPN Silicon Power Transistor 40W 160 MHz 13.6V (NOS)
In Stock
Designed for 13.6 V VHF large-signal Class C and Class AB linear power amplifier applications in industrial and commercial equipment.
- Specified 13.6 V, 160 MHz characteristics — Output power = 40 W, Power Gain = 9.0 dB Min, Efficiency = 55% Min
- High Common Emitter Power Gain
- Load Mismatch Capability at Rated Voltage and RF Drive
- Silicon Nitride Passivated
- Low Intermodulation Distortion, d3= -30 dB Typ
New Old Stock * No longer available for export
MFR: Motorola
SKU: MRF240

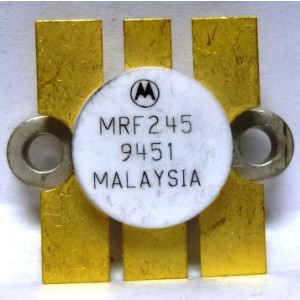

MRF245 Motorola Transistor NPN Silicon RF Power Transistor 80 Watt 12 Volt 175 MHz (NOS)
In Stock
Transistor NPN Silicon RF Power Transistor 80 Watt 12 Volt 175 MHz
New Old Stock * No longer available for export
MFR: Motorola
SKU: MRF245
MRF245 Motorola Transistor NPN Silicon RF Power Transistor 80W 12V 175 MHz Matched Pair (2) (NOS)
In Stock
Designed for 12.5 volt VHF large-signal amplifer applications in industrial and commercial FM equipment operating to 175 MHz.
- Output Power: 80 watts
- Minimum Gain: 6.4dB
- Efficiency: 55%
- Case: 316-01
New Old Stock * No longer available for export
MFR: Motorola
SKU: MRF245MP

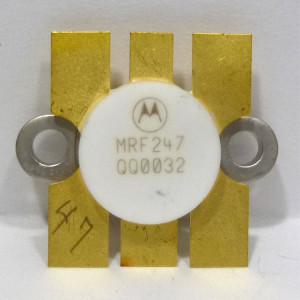

MRF247 Motorola Transistor 175 MHz 75W 12.5V (NOS)
Out of Stock
New Old Stock * No longer available for export
MFR: Motorola
SKU: MRF247

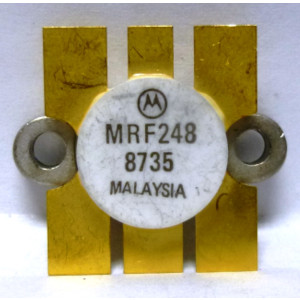

MRF248 Motorola NPN Silicon RF Transistor 12V 175 MHz 80W (NOS)
In Stock
Designed for 12.5 volt VHF large signal amplifier applications in industrial and commercial FM equipment operating to 175 MHz.
- Output Power: 80 Watts
- Gain: 11.3 dB
- Efficiency: 59%
New Old Stock * No longer available for export
MFR: Motorola
SKU: MRF248
MRF248 Motorola NPN Silicon RF Transistor 12.5V 175 MHz 80W (SRF3897) Matched Pair (2) (NOS)
In Stock
NPN Silicon RF Transistor 12.5V 175 MHz 80W
Matched Pair (2)
New Old Stock * No longer available for export
MFR: Motorola (SRF3897)
SKU: MRRF248MP

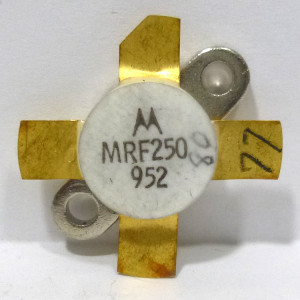

MRF250 Motorola NPN Silicon RF Power Transistor 12.5V 175 MHz 50W (NOS)
In Stock
Designed for 12.5 Volt VHF large-signal amplifier applications in industrial and commercial equipment operating to 200 MHz.
New Old Stock * No longer available for export
MFR:Motorola
SKU: MRF250

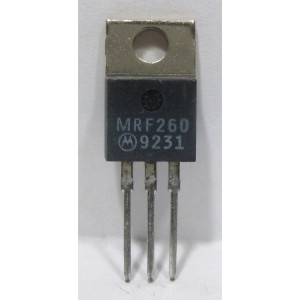

MRF260 Motorola NPN Silicon RF Power Transistor 12.5V 175 MHz 5.0W (NOS)
In Stock
Designed for 12.5 Volt VHF large-signal power amplifier applications in industrial and commercial equipment.
- Low-Cost Common-Emitter TO-220AB Package
- Specified 12.5 Volt, 175 MHz Performance: Output Power= 5.0 W, Power Gain= 10 dB, Efficiency= 55%
New Old Stok * No longer available for export
MFR: Motorola
SKU: MRF260

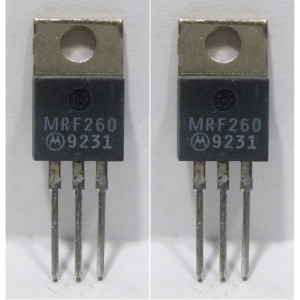

MRF260 Motorola NPN Silicon RF Power Transistor 12.5V 175 MHz 5.0W Matched Pair (2) (NOS)
In Stock
Designed for 12.5 Volt VHF large-signal power amplifier applications in industrial and commercial equipment.
- Low-Cost Common-Emitter TO-22AB Package
- Specified 12.5 Volt, 175 MHz Performance: Output Power= 5.0 W, Power Gain= 10 dB, Efficiency= 55%
New Old Stock * No longer available for export
MFR: Motorola
SKU: MRF260MP
