HT57 Series 15kv

HT57/HH57/857 Series RF Doorknob Caps
15 KVDC Rating
1.187" Diameter x 1.89" Long • 10-32 Thread
DOORKNOB DIMENSIONS
RF Parts
Number
Factory
Part #

pF

TC
Current/Amps
1 MHz     10 MHz     30 MHz
15 KVDC Rating   P=CLEAN PULLOUT
570010-15P HT574100 10 NPO

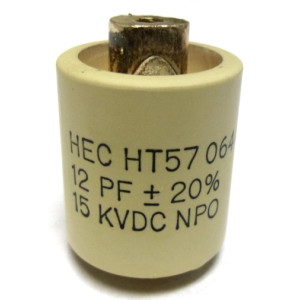

570012-15 HT57Y120MA 12 NPO .66 10.1 11.3
570018-15P HT574180  18 NPO

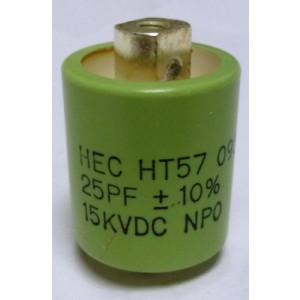

570025-15 HT57Y250KA 25 NPO 1.66 11.5 12.5

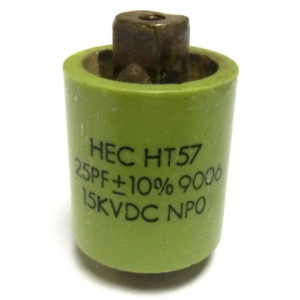

570025-15P HT57Y250KA 25 NPO 1.66 11.5 12.5
570033-15 HT57Y330MA 33 NPO 1.85 11.7 12.7
570040-15P HT57Y400 40 NPO 3.00 12.0 12.8

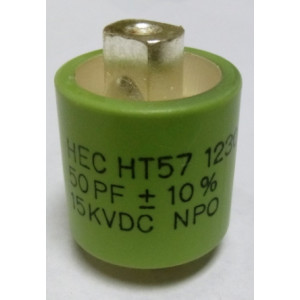

570050-15 HT57Y500KA 50 NPO 3.33 12.5 13.0

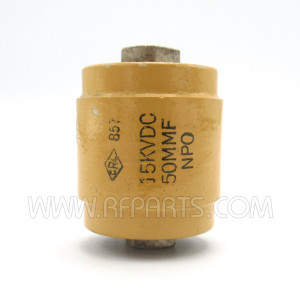

570050-15P HT57Y500 50 NPO 3.33 12.5 13.0
510100-15 2DHT51Y101KAA 100
570100-15 HT57Y101MA 100 N-750 3.8 11.1 13.7
570100-15P HT57Y101MA 100 N-750 3.8 11.1 13.7
570200-15 HT57Y201KA 200 N-750 5.1 12.5 15.0
570500-15 HT57Y501MA 500 N4700 2.6 5.8 6.9
571000-15 HH57Y122MA 1000 X5T 2.1 3.8 5.1

List  Grid

per page
Set Descending Direction
  1. 510100-15 Doorknob Capacitor, 100pf 15kv,  Centralab (2DHT51Y101KAA)

    510100-15 Doorknob Capacitor, 100pf 15kv, Centralab (2DHT51Y101KAA)

    $34.95

    510100-15 Doorknob Capacitor, 100pf 15kv, MFR: Centralab  NSN: 5910-00-081-1718

  2. 570075-10P Doorknob Capacitor, 75pf 10kv, MEC (Clean Used)

    570075-10P Doorknob Capacitor, 75pf 10kv, MEC (Clean Used)

    $38.95

    570075-10P Doorknob, 75pf 10kv +/- 5%, MFR: M.E.C. UK

    Limited Quantity Available, Clean pullouts

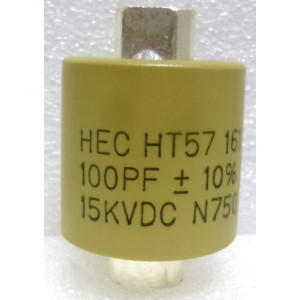

  3. 570100-15 Doorknob Capacitor, 100pf 15kv 10%,  High Energy (HT57Y101KA)

    570100-15 Doorknob Capacitor, 100pf 15kv 10%, High Energy (HT57Y101KA)

    570100-15 Doorknob Capacitor 100pf 15kv 10%  High Energy (HT57Y101KA)

    570100-15 Ceramic Doorknob Capacitor, 100pf 15kv 10%

    MFR: High Energy

    Made in the USA
  4. 570100-15P Doorknob Capacitor,100 pf 15kv, Clean pullout

    570100-15P Doorknob Capacitor,100 pf 15kv, Clean pullout

    $57.95

    570100-15P Doorknob Capacitor,100 pf 15kv, MFR: High Engery or Centralab (Clean pullout)

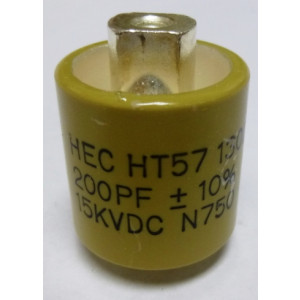

  5. HT57Y201KA High Energy Corporation Doorknob Capacitor 200pf 15kv 10%

    HT57Y201KA High Energy Corporation Doorknob Capacitor 200pf 15kv 10%

    HT57Y201KA High Energy Corporation Doorknob Capacitor 200pf 15kv 10%
    Internal Thread both ends 10 x 32 UNF-2B (1/4 Deep/6mm )
    Size: 1.187" Diameter x 1.890 Long (Maximum)
    MFR: High Energy
    SKU: 570200-15

    Made in the USA

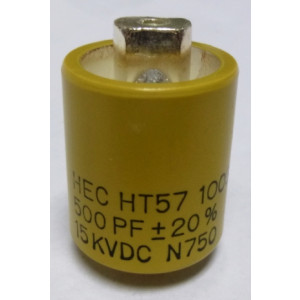

  6. 570500-15 Doorknob Capacitor, 500pf 15kv, High Energy

    570500-15 Doorknob Capacitor, 500pf 15kv, High Energy

    $59.95

    570500-15 Ceramic Doorknob Capacitor, 500pf 15kv 20%, HT57Y501MA, MFR: High Energy

    Made in the USA
  7. 570500-15P Doorknob Capacitor, 500pf 15kv, (Clean Pullout)

    570500-15P Doorknob Capacitor, 500pf 15kv, (Clean Pullout)

    Regular Price: $39.95

    Special Price $34.95

    Out of stock

    570500-15P Doorknob Capacitor, 500pf 15kv, Clean pullout

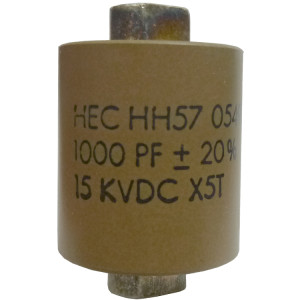

  8. 571000-15  High Energy Doorknob Capacitor 1000pf, 15kv, 20% (HH57Y102MA)

    571000-15 High Energy Doorknob Capacitor 1000pf, 15kv, 20% (HH57Y102MA)

    571000-15 High Energy Ceramic Doorknob Capacitor, 1000pf 15kv 20%

    Made in the USA

  9. 570300-15P Doorknob Capacitor, 300pf 15kv, High Energy (Clean Pullout)

    570300-15P Doorknob Capacitor, 300pf 15kv, High Energy (Clean Pullout)

    Regular Price: $39.95

    Special Price $34.95

    Out of stock

    570300-15P Ceramic Doorknob Capacitor, 300pf 15kv 20%, MFR: High Energy (Clean Pullout)

    Made in the USA
  10. 570008-15P  Capacitor, Doorknob 8pf 15kv, MEC (Clean Used)

    570008-15P Capacitor, Doorknob 8pf 15kv, MEC (Clean Used)

    $37.95

    Out of stock

    570008-15P  Capacitor, Doorknob 8pf 15kv, MFR: MEC (UK) (Clean Used)

Items 1 to 10 of 25 total
