7/8" Cablewave

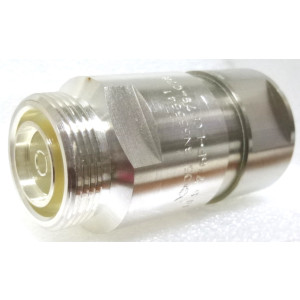

15570472 7/16 DIN Male, 716M-LCF78-072K for LCF78-50, Cablewave, 15570570 7/16 DIN Female, 716F-LCF78-070 for LCF78-50, Cablewave, 716F50V78N1 7/16 DIN Female connector for EC5-50A Cable, Eupen , NM50V78N1 Type-N Male connector for EC5-50A Cable, Eupen , NF50V78N1 Type-N Female connector for EC5-50A Cable, Eupen , 716M50V78N1 7/16 DIN Male connector for EC5-50A Cable, Eupen , 735106 HN Male Connector, Knurled Nut for Cablewave SLA / FXA 7/8" Cables, Cablewave

List  Grid

per page
Set Descending Direction
  1. 738254 LC Male Connector for HCC 78-50 Cable, Cablewave

    738254 LC Male Connector for HCC 78-50 Cable, Cablewave

    $99.95

    738254 LC Male Connector for HCC 78-50 Cablewave Cable, MFR: RFS/Cablewave

  2. SGL5-15B4  SureGround® Grounding Kit for 7/8 in corrugated coaxial cable, Andrew

    SGL5-15B4 SureGround® Grounding Kit for 7/8 in corrugated coaxial cable, Andrew

    Regular Price: $24.91

    Special Price $19.95

    SGL5-15B4  SureGround® Grounding Kit for 7/8 in corrugated coaxial cable, MFR: Andrew


  3. LCF78-50JAA7 RFS 7/8" Premium Attenuation Low-Loss Foam-Dielectric CELLFLEX® Cable

    LCF78-50JAA7 RFS 7/8" Premium Attenuation Low-Loss Foam-Dielectric CELLFLEX® Cable

    LCF78-50JAA7 CELLFLEX®  ELECTRICAL SPECIFICATIONS:

    Impedance, Ohm Ω 50 +/- 1
    Maximum Frequency GHz 5
    Velocity, percent % 88
    Capacitance pF/m (pF/ft) 74 (22.5)
    Inductance, uH/m (uH/ft) µH/m (µH/ft) 0.185 (0.056)
    Peak Power Rating kW 85
    RF Peak Voltage Volts 2920
    Jacket Spark Volt RMS 8000
    Return Loss (VSWR) Performance Standard or Premium according to B-Class
    Min. Return Loss (Max. VSWR) dB (VSWR) Standard 20 (1.222), Premium 24 (1.135)/ 23 (1.152)
    Temperature & Power Standard

    MFR: Radio Frequency Systems, Inc.
    SKU: LCF78-50JAA7
    Minimum Order 5 Feet

    Note: Special Order.  Delivery is 4-5 weeks ARO.



    Made in the USA
