CompPro Series

Comp Pro® Compression Connectors for Braided Cables

ComPro Compression Draiwing

  1. Videos
  2. Features of Connectors
  3. Video Preview
  4. Installation Instructions
  5. Video Preview

The Comp Pro® Product Line utilizes a patented compression technology that offers revolutionary advantages for a water-tight connection, easier installation, and improved system reliability on braided cables.

  • Patented 360 degree compression that seals out moisture, dust and air, preventing water ingress, eliminating connector–related downtime and maintenance over the site’s entire life cycle
  • 2X pin strength for superior RF signal transmission
  • Highest pull strength in the industry – for reliable performance in the most strenuous conditions
  • Solid, one-piece construction for an easy, one-minute installation process

Installation Instructions

Comp Pro Overview

Connectors for 400 size Cable
Part Number Description Spec Sheet
COMP-DM-400 7-16 DIN Male Connector Assembly, 50 Ohm for 400 size cable Download
COMP-NF-400 N Female Connector Assembly, 50 Ohm for 400 size cable Download
COMP-NM-400 N Male Connector Assembly, 50 Ohm for 400 size cable Download
COMP-NM-400PL N Male Connector Assembly, 50 Ohm for 400 Plenum size cable
COMP-NRA-400 N Male right angle Connector Assembly, 50 Ohm for 400 size cable Download
COMP-TM-400 TNC Male Connector Assembly, 50 Ohm for 400 size cable Download
COMP-TM-400PL TNC Male Connector Assembly, 50 Ohm for 400 Plenum size cable
COMP-TRA-400 TNC Male Connector Assembly, 50 Ohm for 400 size cable Download
Complete Tool Kits
Part Number Description
KIT400 Tool Kit, for Type N, 50 Ohm for 400 size cable
KIT400NT Tool Kit, Type N and TNC, 50 Ohm for 400 size cable
Cable Cutter
Part Number Description
CXC CXC Cable Cutter
Compression Tools, Insertion Tools and Adapters
Part Number Description
IT50NM Insertion tool for N Male, 50 Ohm
IT50TA Adapter, Insertion Tool for TNC, 2 pack
VT500 Compression Crimp Tool, 50 Ohm Braid, 195-500
Replacement Parts
Part Number Description
POUCH-50 Tool Pouch, 50 OHM
RC400-50 Replacement Cartridge, 50 Ohm, 400 Cable
SDT400-50 Cartridge Trimmer, 50 Ohm, 400 Cable
Marking Caps and Pen
Part Number Description
MCAP400 Marking Guide, 50 Ohm, 400
PEN-50 Marking Pen, Silver; Staples Item #50320

List  Grid

per page
Set Descending Direction
  1. COMP-TM-400 RF Industries Straight TNC Male Compression Connector

    COMP-TM-400 RF Industries Straight TNC Male Compression Connector

    RF Industries Compression TNC male connector for 400 sized cables. Captivated center pin, non-corrosive materials and one piece design. Water Tight Seal.
    Cable Group: I
    Cable Types: LMR400, CNT400
    Freq:  DC-6 GHz
    Ohms: 50
    Interface Type: N, Male
    Insulator: Ultem® 1000
    Gasket: Silicone Rubber
    MFR: RF Industries
    SKU: COMP-TM-400

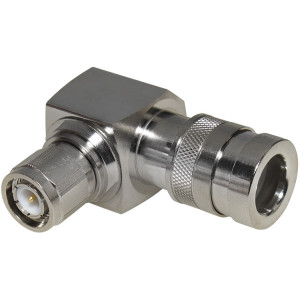

  2. COMP-TRA-400 RF Industries TNC Male Right Angle Connector for Cable Group I

    COMP-TRA-400 RF Industries TNC Male Right Angle Connector for Cable Group I

    RF Industries Compression TNC Right Angle male connector for 400 sized cables. Captivated center pin, non-corrosive materials and one piece design. Water Tight Seal.
    Cable Group: I
    Cable Types: LMR400, CNT400
    Freq:  DC-6 GHz
    Ohms: 50
    MFR: RF Industries
    SKU: COMP-TRA-400

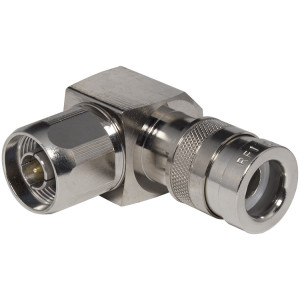

  3. COMP-NRA-400 RF Industries Type-N Male Right Angle Connector Assembly

    COMP-NRA-400 RF Industries Type-N Male Right Angle Connector Assembly

    RF Industries Compression Type-N Right Angle male connector for 400 sized cables. Captivated center pin, non-corrosive materials and one piece design. Water Tight Seal.
    Cable Group: I
    Cable Types: LMR400, CNT400
    Freq:  DC-6 GHz
    Ohms: 50

    MFR: RF Industries
    SKU: COMP-NRA-400

  4. COMP-DM-400 RF Industries 7/16 DIN Male Connector Assembly

    COMP-DM-400 RF Industries 7/16 DIN Male Connector Assembly

    Compression Type DIN male connector for 400 sized cables. Captivated center pin, non-corrosive materials and one piece design. Water Tight Seal.
    Cable Group: I
    Cable Types: LMR400, CNT400
    Freq:  DC-6 GHz
    Ohms: 50
    MFR: RF Industries
    SKU: COMP-DM-400

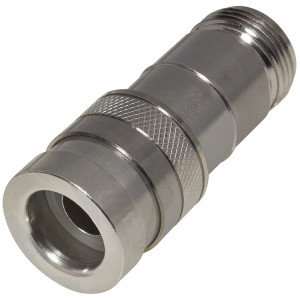

  5. COMP-NF-400 RF Industries Type-N Female Connector Assembly

    COMP-NF-400 RF Industries Type-N Female Connector Assembly

    RF Industries Compression Type-N Female connector for 400 sized cables. Captivated center pin, non-corrosive materials and one piece design.
    Water Tight Seal.
    Cable Group: I
    Cable Types: LMR400, CNT400
    Freq:  DC-6 GHz
    Ohms: 50
    MFR: RF Industries
    SKU: COMP-NF-400

  6. TQ-114-F18 RF Industries 1-1/4" (Hex Nut Size) 18 Ft-lbs Torque Wrench for DIN Connectors

    TQ-114-F18 RF Industries 1-1/4" (Hex Nut Size) 18 Ft-lbs Torque Wrench for DIN Connectors

    $152.91

    Torque Wrench for 7/16 DIN Male style 1/2" CompPro® compression connectors. 3/4" opening and 14 in/lbs of torque

    Cable Group: I
    Cable Types: LMR400, CNT400
    MFR: RF Industries
    SKU: TQ-114-F18
