Modules - RF Power

Silicon RF devices are widely used in portable wireless communication devices that operate in the frequency band under 1GHz in order to amplify their transmission power

Mitsubishi Silicon RF devices which are the key parts for amplifying power of the transmission stage of mobile wireless communication devices in the high frequency band from several MHz to 1GHz robustly support wireless communication networks with a wide range of product lineup, such as mobile professional radio equipment for public agency use, amateur radio equipment, and the onboard vehicle telematics market.

Please choose from the following MODULE Sub-Catagory choices:

MOSFET Modules-- Toshiba / Mitsubishi

Mosfet Module

BiPolar modules from 0-100 MHz

Bi Polar Modules 0-100 MHz

BiPolar modules from 101-250 MHz

Bi Polar Modules 101-250 MHz

BiPolar modules from 251-550 MHz

 Bi Polar Modules 251-550 MHz

BiPolar modules from 551-1300MHz

Bi Polar Modules 551-1300 MHz



Circuit Boards for Modules

Circuit boards

Miscellaneous

Misc Modules



 Most of our Power Modules have a data sheet. When you click on a part, under the image click on the "Data Sheet" tab. If no data sheet is avaliable please contact our customer service department and we will try and track one down for you.


RF Power Module Case Styles and Line Drawings. PDF


Case Style H2 & 5-53P (MOSFET)

Will fit most Mitsubishi RA Series modules of 13, 30, 45 & 60 watt, and Toshiba SAV Series utilizing H2 & 5-53P configuration.
Originally designed for RA18H1213G 1200-1300MHz module, the DEM2330 comes with application notes for this module. Can be used for most applications from 50-1300MHz when appropriate caps and inductors are used. FR4 board with plated thru holes.
Size 3.75” x 1.5”.


Case Style H3
(M57727, M57735, M57745, M57762, SAU4, etc.). Easily modified to use H2 case styles (SAV7, SAV15, SAV17, etc.). Includes application notes for module frequencies 50-1300 MHz.
Provides for placement of bypass capacitors and choke coils. Connections for MC7809 voltage regulator if required. Double-sided FR4 board with plated thru holes.
Size 4.1” x 1.0”.


Case Style H12, H13 or H27
(M57787, M57799, M67715, M67723 and most 42-45mm length modules). Includes application notes for module frequencies 50-1300 MHz.
Provides for placement of bypass capacitors and choke coils. Connections for MC7809 (78S09) voltage regulator if required. Double sided FR4 board.
Size 1.125” x 2.75”.


NOTE: Before Module Installation, antenna switching PIN diodes should be tested (normal Ohmmeter test for Hi/Lo resistance).

No exchange or warranty on transistors or modules which, in our opinion, have been damaged, installed, or soldered to. Modules and Transistors are fully tested under load and SWR by the factory to meet their specifications. Check your circuit, antenna, coax, etc., to make sure it is properly adjusted or repaired before installing new part.

No further Warranty is assumed or implied.




We can supply equivalent Icom "SC" part numbers. Please contact our Customer Service Department if you need further assistance.

ICOM
Part Number
Equivalent
Part Number
ICOM
Part Number
Equivalent
Part Number
ICOM
Part Number
Equivalent
Part Number
SC1005
M57715
SC1044
SAV6
SC1106
M57796H
SC1010
M57710A
SC1046
M57732
SC1107
M67713
SC1011
SAV7
SC1054
M57788M
SC1111
M67703M
SC1013
M57727*
SC1056
M57729H
SC1113
M67727
SC1016
M57716
SC1062
M57721L
SC1114
M67728
SC1018
M57714
SC1066
M67711
SC1121
M57797H
SC1019
SAV7
SC1068
M67712
SC1124
M57737R
SC1020
M57727
SC1069
M57735
SC1125
M57726R
SC1022
SAV17
SC1077
M67732
SC1131
M67741L
SC1024
M57745
SC1080
M57732L
SC1142
M67748L
SC1025
M57796MA
SC1081
M57721M
SC1143
M67749M
SC1026
M57797MA
SC1083
M57787
SC1146
*
SC1027
*
SC1088
M67702
SC1193
*
SC1028
SAV15
SC1090
SAU16L
SC1197
*
SC1029
SAV16H
SC1091
SAV17
SC1223
M67755H
SC1030
M57797H
SC1096
M57796MA
SC1274
M57786M
SC1038
SAV6
SC1097
M57797MA
SC1284
M67799M
SC1040
M57762
SC1106
M57796H
SC1307
SAV6
SC1043
M67715
SC1107
M67713
SC1318
M57788MR
* Call for technical information.

List  Grid

per page
Set Descending Direction
  1. M67710H Mitsubishi Power Module 7W 150-175 MHz (NOS)

    M67710H Mitsubishi Power Module 7W 150-175 MHz (NOS)

    $17.95

    Power Module 7W 150-175 MHz
    New Old Stock * No longer available for export
    MFR: Mitsubishi
    SKU: M67710H

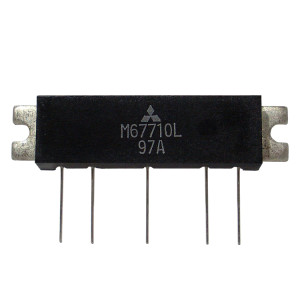

  2. M67710L Mitsubishi Power Module 7W 135-160 MHz (NOS)

    M67710L Mitsubishi Power Module 7W 135-160 MHz (NOS)

    $29.95

    Power Module 7W 135-160 MHz
    New Old Stock * No longer available for export
    MFR: Mitsubishi
    SKU: M67710L

  3. M67712 Mitsubishi Power Module 30W 220-225 MHz (NOS)

    M67712 Mitsubishi Power Module 30W 220-225 MHz (NOS)

    $72.91

    Power Module 30W 220-225 MHz (SC1068)
    New Old Stock * No longer available for export
    MFR: Mitsubishi
    SKU: M67712

  4. M67723 Mitsubishi Power Module 7W 220-225 MHz (NOS)

    M67723 Mitsubishi Power Module 7W 220-225 MHz (NOS)

    $51.91

    Power Module 7W 220-225 MHz
    New Old Stock * No longer available for export
    MFR: Mitsubishi
    SKU: M67723

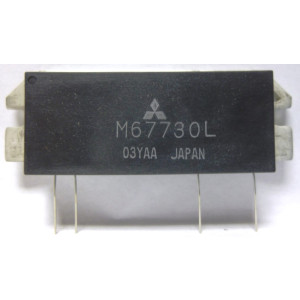

  5. M67730L Mitsubishi Power Module 30W 174-200 MHz (NOS)

    M67730L Mitsubishi Power Module 30W 174-200 MHz (NOS)

    $69.95

    Power Module 30W 174-200 MHz
    New Old Stock * No longer available for export
    MFR: Mitsubishi
    SKU: M67730L

  6. M67741H Mitsubishi Power Module 30W 150-175 MHz (Pull)

    M67741H Mitsubishi Power Module 30W 150-175 MHz (Pull)

    $52.00

    Power Module 30W 150-175 MHz
    Used * No longer available for export
    MFR: Mitsubishi
    SKU: M67741H-PULL

  7. M67741L Mitsubishi Power Module 30W 135-160 MHz (NOS)

    M67741L Mitsubishi Power Module 30W 135-160 MHz (NOS)

    $54.95

    Power Module 30W 135-160 MHz
    New Old Stock * No longer available for export
    MFR: Mitsubishi
    SKU: M67741L

  8. M67743H Mitsubishi Power Module 17W 77-88 MHz (NOS)

    M67743H Mitsubishi Power Module 17W 77-88 MHz (NOS)

    $39.95

    Power Module 17W 77-88 MHz
    New Old Stock * No longer available for export
    MFR: Mitsubishi
    SKU: M67743H

  9. M67743L Mitsubishi Power Module 7W 68-81 MHz (NOS)

    M67743L Mitsubishi Power Module 7W 68-81 MHz (NOS)

    $49.95

    Power Module 7W 68-81 MHz
    New Old Stock * No longer available for export
    MFR: Mitsubishi
    SKU: M67743L

  10. M67766A Mitsubishi Power Module 6W 820-850 MHz (NOS)

    M67766A Mitsubishi Power Module 6W 820-850 MHz (NOS)

    $34.91

    Power Module 6W 820-850 MHz
    New Old Stock * No longer available for export
    MFR: Mitsubishi
    SKU: M67766A

Items 21 to 30 of 270 total
