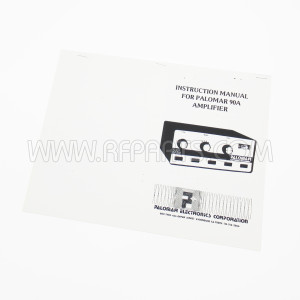

Instruction Manual for Palomar 90A LInear Amplifier.  Reprint of the original manual.

Includes:

• General Information
• Installation
• Tuning and Operation
• Servicing
• Troubleshooing Chart
• Voltage Chart
• Parts List
• Schematic

SKU: SMP90A

LED-YELLOW-10  Standard Replacement LED, YELLOW, Used in many applications that use 0.20 diameter LED. (PACK OF 10 PIECES)

Orange Standard Replacement LED (PACK OF 10 PCS)

 SKU: LED-ORANGE-10

LED-LIGHTGREEN-10  Standard Replacement LED, LIGHT GREEN, Used in many applications that use 0.185 diameter LED. (PACK OF 10 PIECES)

DA101-PB-B  Toggle Switch, SPST, 5a 250vac, 10a 125vac, 1/2 HP 125-250 vac, ON-OFF, MFR: Carlingswitch

Used in original Palomar and Black Widow amplifiers in the 80's and 90's, New Old Stock

SPDT toggle switch originally used in Palomar & Black Widow amplifiers in the 70's and 80's.

• 5a 250vac
• 10a 125vac
• 1/2hp 125-250 vac

New Old stock * No longer available for export
MFR: Carling Switch
SKU: DA103-PB-B

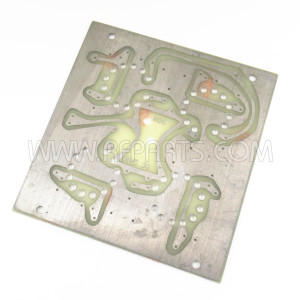

221Cover Palomar Aluminum Cover for the 221 Chassis (New Old Stock)

SKU: 221cover

See 221CHAS and 221A XFMR

221 Palomar Aluminum Chassis and Cover for 221 Palomar Amplifier (NOS)

Special Price.

See  221A XFMR for matching transformer for this chassis.

New Old Stock  Not available for export.

In Original Packaging
MFR Stock #: 6011

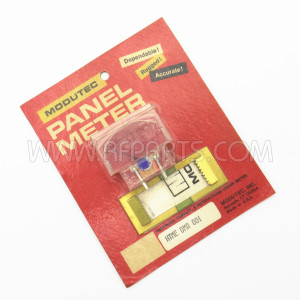

Range: 0-1 DC Milliamperes
Size:  1-17/16" wide, x 13/16" high, x 1-13/16" deep (body of Meter), 1-15/16" depth front to end of solder pins.
New Old Stock * No longer available for export
MFR: Modutec
SKU: HTME-DMA-001
