Misc. Special Relays

12VDC Coil unless otherwise indicated.
Part NumberStyleTypeCoil
VDC
Coil
Ohms
AmpL x W x H
(inches)
Notes
RL5 Relay SPDT - - 40 - Xpress
RL5-50C Socket for RL5 - - - - - 10" leads
LZN2-12V Flatpack DPDT 2.0 12 480 1.2x0.8x0.4 Omron / Hurricane 350
NF2-12V Flatpack DPDT 2.0 12 480 1.2x0.8x0.4 Aromat / Hurricane 350
LZN2-US PCB DPDT 12 500 2 - - / Hurricane 350
NC2ED-JP-DC12V PCB DPDT 12 415 5 - Aromat / -

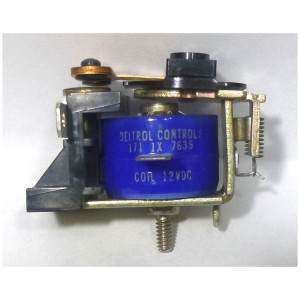

171-1X-7635 Open Frame SPST 12 100 20 1.8x1.0x1.3 Deltrol
RLY8512 Open Frame SPST 12 100 30 1.8x1.0x1.3 Philips/ECG / W88KDX-2
W88KDX-3 Open Frame SPST 24 400
KA11DG-12V Open Frame DPDT 12 120 10 1.7x1.0x1.2 P & B / -
1819-16 Open Frame DPDT 12 240 10 1.7x1.0x1.2 - / -
KA11AG Open Frame DPDT 24vac 75 10 1.7x1.0x1.2 P & B / -
RLY1425 Open Frame SPDT 120VAC - - 1.7x1.0x1.3 ECG / -
KA14AY-120 Open Frame 3PDT 120VAC - 5 1.7x1x1.3 P & B / -
MK305 Open Frame KPDT 100 6.8k 5 - - / -
KA1538 Open Frame DPDT 110 7.2k 5 1.7x1.0x1.2 P & B / -
KA11DG Open Frame DPDT 110 9k 10 - P & B / -
KA2245 Open Frame 3PDT 110 9k 5 2.1x1.5x1.3 P & B / -
16010010 Open Frame 3PDT 110 9.5k 5 1.8x1.0x1.2 - / -
3PDT10A110v Open Frame 3PDT 110 8.2k 10 1.8x1.1x1.3 - / Interchange.
303D10 Open Frame 3PDT 110 10k 10 1.9x1.0x1.3 CDE / Astro, Atlas
CA14D10 Open Frame 3PDT 110 10k 8 1.7x1.6x1.2 Schrack / -
R14-11D-12 Enclosed DPDT 10 165   - NTE / -
DPDT-12v Enclosed DPDT 12 160 10 1.6x0.8x1.1 - / -
ITT4B841R PCB 4PDT 12 170 3 1.6x0.8x1.1 ITT / -
MY4-02 PCB 4PDT 12 150 5 1.6x0.8x1.1 Omron / RLY7062P
C281XDX Term 4PDT 12 150 5 - Swan / -
LY2-UA-006244 Enclosed DPDT 120VAC 4k 12 1.1x0.8x1.4 FSP / Vert Mt, Term up
268DPDT-24 Enclosed DPDT 24 250 15 2x1.5x1.3 Deltrol / -
CRH1530 Enclosed 3PDT 110 9.6k 20 2.1x1.5x1.3 - / -
RM202221 Term DPDT 220 39K 16 1.4x1.5x2.1 - / -
MY2 Enclosed DPDT 115VAC 4.5k 5 1.1x0.8x1.4 Omron / -
166P-DPDT Enclosed DPDT 12 120 10 1.5x1.3x2.0 Deltrol / -
GQ-DPDT-12D Enclosed DPDT 12 115 10 2x1.5x1.3 Master / Power/Ant SW
KRUP110 Enclosed 3PDT 110 8.6K 13 2x1.5x1.3 Kest / Power/Ant SW/SB220
CRH153D Enclosed 3PDT 110 10K 10 2x1.5x1.3 Line Elec / Power/Ant SW
188-25B2U1 Enclosed SDDT 12 120 30 2x1.5x1.3 - / Power/Ant SW
KUMP-14D18-110 Enclosed 3PDT 110 10K 15 2x1.5x1.3 P & B / SB220 Substitute
KRUP240 Enclosed 3PDT 240VAC 6.7K 13 2x1.5x1.3 Kest / -
A283XCX252 Enclosed 3PDT 24 460 5 2x1.5x1.3 MSD / Power/Ant SW
RLY1943F Enclosed DPDT 24 450 16 2x1.5x1.3 ECG / Power/Ant SW
RG2E-5V PCB DPDT 5 - 1 1x0.9x0.4 Aromat / -
204801-928 PCB DPDT   200 2 - Old Outcom
T-DC-12P Term DPDT 12 100 5 - Teledyne / Early KLM
221D012 PCB DPDT 12 300 2 - - / -
244DN0-12/02C PCB DPDT 12 300 2 Sealed - / Similar to FBR244D012
FBR244D012 PCB DPDT - - - - - / -
DSBT-S-D05V PCB DPDT 5 70 2 - NAIS / -
NR-HD-12 PCB SPDT 12 1K 0.9x0.4x0.4 Matsushita / Fast RF reed
RSD-12V PCB DPDT 12 890 - Aromat / 150W Fast RF reed
RZ12 PCB DPDT 12 285 2 - - / -
190-22B100 PCB DPDT 12 300 2 - Midtex / Sub for RZ12
DS2E-M-DC12V PCB DPDT 12 360 2 0.8x0.4x0.4
DS2Y-S-DC12V PCB DPDT 12 720 / - NAIS / -
N4078-2C-12V-0.2 PCB DPDT 12 730 2 0.8x0.4x4.8 NHG
JY1J-DC12V PCB SPDT 12 355 5 0.8x0.4x0.8 Aromat / -
JWZEN-DC12V PCB DPDT 12 280 5 1.1x.5x1.0 Messenger
W76URCPCX-16 PCB SPDT 12 290 10 - Magnecraft / -
JR1-DC12V PCB SPDT 12 280 10 - Aromat / -
JR2A-DC12V PCB DPST 12 280 5 - Aromat / -
JW2EN-12V PCB DPDT 12 280 5 1.1x0.5x0.8 Aromat / Messenger.
621D012 PCB DPDT 12 300 5 1.1x0.5x1.0 - / -
VB12TCU PCB DPDT 12 5 1.1x0.5x1.0 Messenger
GR2-214-V-US PCB DPDT 12 5 1.1x0.5x1.0 - / -
G2R-117P-V-US PCB SPDT 24 1.1K 10 1.1x0.5x1.0 Omron / -
G2R-1-E PCB SPDT 24 1.1K 16 1.1x0.5x1 Omron / -
G2R-14-120VAC PCB SPDT 120VAC 7.2K 10 1.1x0.5x1.0 Omron / Sealed
W171DIP-4 PCB - 12 - - - Magnecraft / -
W172DIP-3 PCB - 12 - - - Magnecraft / -
W172DIP-19 PCB - 12 - - - Magnecraft / Atlas 350XL

List  Grid

per page
Set Descending Direction
  1. RG2E-5V Aromat DPDT Relay 5v

    RG2E-5V Aromat DPDT Relay 5v

    $18.91

    • 18 pins
    • Size: 1" x 0.9" x 0.38" inches

    New Old Stock * No longer available for export
    MFR: Aromat
    Made in Japan
    SKU: RG2E-5V

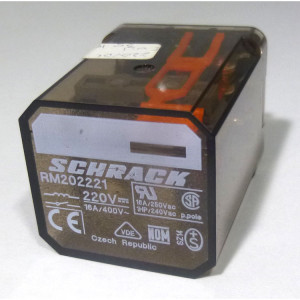

  2. RM202221 Relay, DPDT, 16a 220v, Schrack

    RM202221 Relay, DPDT, 16a 220v, Schrack

    Regular Price: $17.95

    Special Price $14.95

    As low as: $13.95

    RM202221 Relay, DPDT, 16a 220v, MFR: Schrack



  3. 204801-928 Relay

    204801-928 Relay

    $19.95

    204801-928 Relay

  4. 190-22B100 Midtex DPDT 12 vdc 2 Amp High Sensitivity DIP PC Board Relay

    190-22B100 Midtex DPDT 12 vdc 2 Amp High Sensitivity DIP PC Board Relay

    $12.91

    New Old Stock * No longer available for export
    MFR: Midland Ross (Midtex Division)
    SKU: 190-22B100

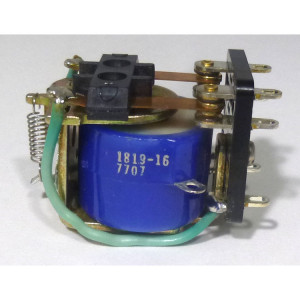

  5. 1819-16 Deltrol Open Frame Relay DPDT 12vdc 10 amps

    1819-16 Deltrol Open Frame Relay DPDT 12vdc 10 amps

    Size:  1.8" x 0.8" x 1.2"

    Coil: 245 ohm
    New Old Stock * No longer available for export
    MFR: Deltrol

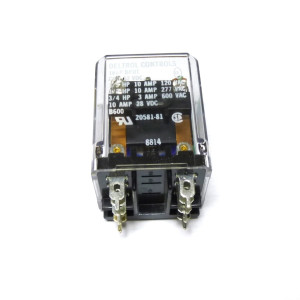

  6. 166P Deltrol DPDT Enclosed Relay 12vdc 10 amp

    166P Deltrol DPDT Enclosed Relay 12vdc 10 amp

    $15.91

    • Coil: 12vdc
    • 1/3HP 10 amp 120vac
    • 1/2 HP 10 amp 277vac
    • 3/4 HP 3 amp 600vac
    • 10 amp 28vdc

    MFR: Deltrol Controls
    SKU: 166P

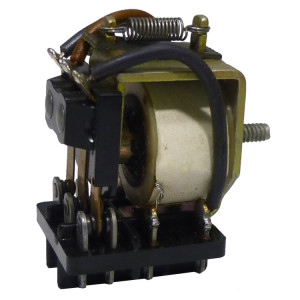

  7. 16-010-010A Vintage Open Frame Relay 3PDT 110vdc 5a (NOS)

    16-010-010A Vintage Open Frame Relay 3PDT 110vdc 5a (NOS)

    $19.91

    • Possible replacement for the SB220 and SB221 amplifiers.
    • Similar to the KA14DY

    New Old Stock
    MFR: Unbranded
    SKU: 16-010-010A

  8. W76URCPCX-16 Relay, Magnecraft

    W76URCPCX-16 Relay, Magnecraft

    $7.95

    W76URCPCX-16 Relay

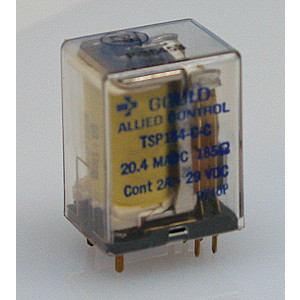

  9. TSP154-C-C Relay, DPDT, Relay, Terminal Type, 29vdc, 2a, Gould

    TSP154-C-C Relay, DPDT, Relay, Terminal Type, 29vdc, 2a, Gould

    $12.95

    TSP154-C-C Relay, DPDT, Terminal Type, 2 amp, 29vdc 20.4 ma DC, 185 ohm, MFR: Gould (NOS)

  10. W172DIP-3 Magnecraft Relay

    W172DIP-3 Magnecraft Relay

    $8.91

    • Nominal Input Voltage: 12v
    • Nominal Resistance (Ohms): 500Ω
    • Nominal Power: 300mW

    MFR: Magnecraft
    SKU: W172DIP-3

    Data Sheet

Items 41 to 50 of 93 total
