Broadband Ferrite
Broadband Ferrite Transformers
for 2-35 MHz Solid State Amplifiers
Absolutely the best quality Input & Output transformers for use in Linear and Class C amplifiers. Commonly used in commercially built amplifiers using SD1446, MRF454, MRF455, 2SC2290, 2SC2879, and similar transistors. Transformers are built in various lengths from 1/2" O.D. ferrite.
| Frequency 2-35MHz | ||
|---|---|---|
| Part Number | Notes | Length |
| T1/4 | ¼” | |
| T1/2 | Type 61 Material | ½” |
| T3/4 | Type 61 Material | ¾” |
| T3/4-1 | Type 61 Material. Same as T-.75 without foot on back plate. | ¾” |
| T1 | Type 61 Material | 1” |
| T1.25 | Type 61 Material | 1¼” |
| T1.5 | Type 61 Material | 1½” |
| T2 | Type 61 Material | 2” |
| T.25-43 | Type 43 Material | ¼” |
| T.5-43 | Type 43 Material | ½” |
| T.75-43 | Type 43 Material | ¾” |
| T1-43 | Type 43 Material | 1” |
| T1.25-43 | Type 43 Material | 1¼” |
| T1.5-43 | Type 43 Material | 1½” |
| T2-43 | Type 43 Material | 2” |
T3/4-W3 Solid Core Ferrite Transformer Type 61 Material
In Stock
T3/4-W3 Ferrite Transformer Type 61 Material
SKU: T3/4-W3

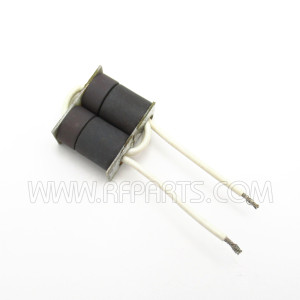

T3/4-W3 Split Core Ferrite Transformer Type 61 Material
In Stock
T3/4-W3 Split Core Ferrite Transformer Type 61 Material
SKU: T3/4-W3S
5943001901 Fair-Rite Products Ferrite Core 43 Material 1/2" x 1/2"
Available on Backorder -- Please call 1-800-RFPARTS (1-800-737-2787) for availability.
This item will ship as soon as it becomes available.
- Outside Diameter: 0.500"
- Inside Diameter: 0.315"
- Inductance Factor (nH): 150 ±25%
- Effective Cross-Sectional Area (cm2): 0.299
- Core Constant (cm-1): 10.4
- Effective Path Length (cm): 3.12
- Effective Core Volume (cm3): 0.93
MFR: Fair-Rite Products
SKU: 5943001901

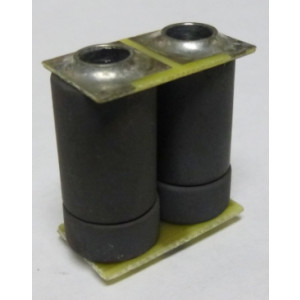

1" Ferrite Core Transformer # 61 Material (T1)
In Stock
Frequency: 2-35 MHz
Overall dimensions: 1.22 Long x 1.09" Wide x 0.675" Height. Hole Diameter is 0.25"
SKU: T1

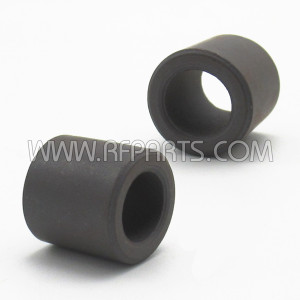

1/2CORE Ferrite Core 61 Material 1/2" x 1/2"
In Stock
- Outside Diameter: 0.515"
- Inside Diameter: 0.311"
- Overall Length: 0.50"
- Material: 61
SKU: 1/2core
