In Series
In Series
In electronics, components are connected in series when they are connected end-to-end, forming a single path for current to flow. If one component fails, the entire circuit is interrupted. Understanding series connections is fundamental for both circuit design and analysis.
In series circuits, the total resistance is the sum of individual resistances, and the voltage across each component is proportional to its resistance.
172122 Amphenol Type-N Male to Type N Male IN Series Barrel Adapter
In Stock
Ohms: 50
Body: Brass
Center Pin: Gold Plated
Dielectric: PTFE
MFR: Amphenol
SKU: 172122

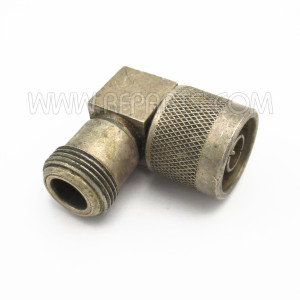

UG27C/U Amphenol Right Angle Type-N Male to Female In Series Adapter (Pull)
In Stock
Square Body
Ohms: 50
Body: Nickel
Pin: Silver
Dielectric: PTFE
Used
MFR: Amphenol
SKU: UG27C/U-AMP-P
UG107A/U Amphenol IN Series Adapter Type N Male to Type N Double Female TEE
In Stock
IN Series Adapter Type N Male to Type N Double Female TEE
Silver, PTFE
MFR: Amphenol
SKU: UG107A/U
RFN-1014-1 RF Industries Type-N Male to Male Barrel IN Series Adapter
In Stock
- Body: Silver Plated Brass
- Pin: Gold PLated Brass
- Dielectric: PTFE
MFR: RF Industries
SKU: RFN-1014-1
82-64-RFX Amphenol Right Angle Type N Male to Female IN Series Adapter
In Stock
Ohms: 50
Body: Nickel Plated Brass
Center Pin: Gold Plated Phosphor Bronze
Dielectric: PTFE
MFR: Amphenol
SKU: 82-64-RFX
82-100 Amphenol Type-N Male to Type N Male In Series Adapter UG57B/U
In Stock
Ohms: 50
Body: Nickel Plated Brass
Center Pin: Gold Plated Brass
Dielectric: PTFE
MFR: Amphenol
SKU: 82-100 (UG57B/U)
172125 Amphenol Type-N Male to Double Type N Female IN Series TEE Adapter
In Stock
Ohms: 50
Body: Brass
Center Pin: Gold Plated
Dielectric: PTFE
MFR: Amphenol
SKU: 172125
UG27D/U IN Series Right Angle Adapter Type N Male to Female (Pull)
In Stock
Square Body
Ohms: 50
Body: Nickel
Center Pin: Gold
Dielectric: PTFE
Clean Used Condition * No longer available for export
MFR: Automatic, Winchester
SKU: UG27D/U-P
UG27D/U Kings IN Series Adapter, Right Angle, Type N Male to Female (NOS)
In Stock
Square Body
Ohms: 50
Body: Silver
Pin: Gold
Die: PTFE
New Old Stock * No longer available for export
MFR: Kings
SKU: UG27D/U-S

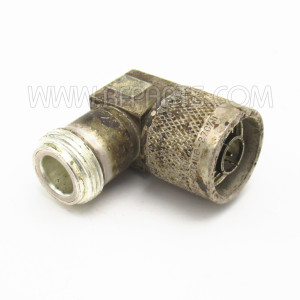

UG27C/U Winchester Right Angle Type-N Male to Female In Series Adapter Silver (Pull)
In Stock
Square Body
Ohms: 50
Body: Silver Plated
Pin: Silver Plated
Dielectric: PTFE
Used
MFR: Winchester
SKU: UG27C/US-WIN-P
