In electronics, components are connected in series when they are connected end-to-end, forming a single path for current to flow. If one component fails, the entire circuit is interrupted. Understanding series connections is fundamental for both circuit design and analysis.
In series circuits, the total resistance is the sum of individual resistances, and the voltage across each component is proportional to its resistance.
32N-50-0-1/133NE Suhner Type-N Male to Male Barrel Adapter (NOS)
In Stock
- Impedance: 50 Ohms
- Frequency Range: DC to 11 GHz
- Body Material: Brass
- Contact Plating: Gold
- Contact Material: Brass
New Old Stock * No longer available for export
MFR: Suhner
SKU: 32N-50-0-1/133NE
UG107B/U Winchester IN Series TEE Adapter Type N Male to Type N Double Female (Pull)
In Stock
IN Series TEE Adapter Type N Male to Type N Double Female
Pins: Gold
Impedance: 50 Ohms
Used * No longer available for export
MFR: Winchester
SKU: UG107B/U-WIN-P
N-QA-JP TYC Type-N Male Quick Disconnect to Type-N Female Adapter
In Stock
- Frequency - Max: 18 GHz
- Center Contact: Gold plated Beryllium Copper
- Body Material: Ternary plated Brass
- RoHS Compliant
MFR: To-Conne Company, LTD.
Made in Taiwan
SKU: TYC5014
NP-A-QJ TYC Type-N Female Quick Disconnect to Type-N Male Adapter
In Stock
- Impedance: 50 Ohm
- Frequency - Max: 8 GHz
- Center Contact: Gold plated Beryllium Copper
- Body Material: Ternary plated Brass
MFR: To-Conne Company, LTD.
Made in Taiwan
SKU: TYC5015
UG27C/U Winchester Right Angle Type-N Male to Female In Series Adapter (Pull)
In Stock
Square Body
Ohms: 50
Body: Nickel
Pin: Gold
Dielectric: PTFE
Used * No longer available for export
MFR: Winchester
SKU: UG27C/U-WIN-P
UG27C/U Ken-Tron Right Angle Type-N Male to Female In Series Adapter (Pull)
In Stock
Square Body
Ohms: 50
Body: Nickel
Pin: Silver
Dielectric: PTFE
Used * No longer available for export
MFR: Ken-Tron
SKU: UG27C/U-KT-P
UG27C/U Cans Right Angle Type-N Male to Female In Series Adapter (Pull)
In Stock
Square Body
Ohms: 50
Body: Nickel
Pin: Gold
Dielectric: PTFE
Used * No longer available for export
MFR: Cans
SKU: UG27C/U-CANS-P

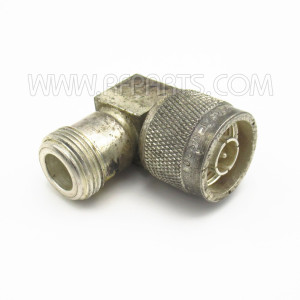

UG27C/U Amphenol Right Angle Type-N Male to Female In Series Adapter (Pull)
In Stock
Square Body
Ohms: 50
Body: Nickel
Pin: Gold
Dielectric: PTFE
Used * No longer available for export
MFR: Amphenol
SKU: UG27C/U-AMP-G-P
Unbranded Right Angle Type-N Male to Type-N Female Adapter (Pull)
In Stock
- Impedance: 50 Ohms
- Contact: Gold plated Brass
- Body: Nickel plated Brass
- Dielectric: PTFE
Used * No longer available for export
MFR: Unbranded
SKU: N-RA-ADAPTER-P
HN-LA TYC Right Angle HN Male to HN Female Adapter
In Stock
- Frequency - Max: 18 GHz
- Center Contact: Gold plated Beryllium Copper
- Body Material: Ternary plated Brass
- RoHS Compliant
MFR: To-Conne Company, LTD.
Made in Taiwan
SKU: TYC5782
