In electronics, components are connected in series when they are connected end-to-end, forming a single path for current to flow. If one component fails, the entire circuit is interrupted. Understanding series connections is fundamental for both circuit design and analysis.
In series circuits, the total resistance is the sum of individual resistances, and the voltage across each component is proportional to its resistance.
UG-27B/U Amphenol Type-N Male to Female Right Angle Adapter (Pull)
In Stock
- Ohms: 50
- Body: Silver
- Center Pin: Silver
- Dielectric: Teflon
Used
MFR: CCRS
SKU: UG27B/U-Amp-P
RFN-1012-1 RF Industries Right Angle Type-N Male to N Female IN Series Adapter (NOS)
In Stock
- Similar to UG27D/U
- Body: Silver Plated Brass
- Pin: Gold Plated Brass
- Dielectric: PTFE
NSN: 5935-01-620-9527
New Old Stock
MFR: RF Industries
SKU: RFN-1012-1-NOS

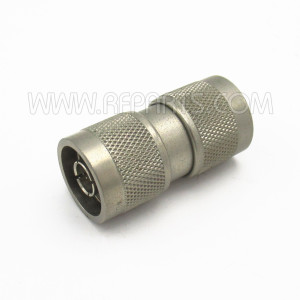

UG-57B/U Delta In-Series Adapter Type-N Male to Male (Pull)
In Stock
Straight Type-N In-Series Adapter Barrel Type-N Male to Male
MFR: Amphenol
SKU: UG57B/U-DELTA-P

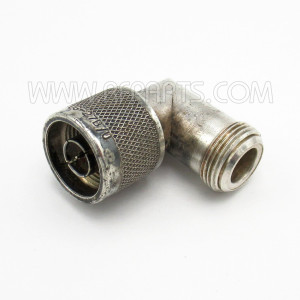

UG-27B/U CANS Type-N Male to Female Right Angle Adapter (Pull)
In Stock
- Ohms: 50
- Body: Silver
- Center Pin: Gold
- Dielectric: Teflon
Used
MFR: CANS
SKU: UG27B/U-CANS-P
32N-50-0-1/133NE Suhner Type-N Male to Male Barrel Adapter (NOS)
In Stock
- Impedance: 50 Ohms
- Frequency Range: DC to 11 GHz
- Body Material: Brass
- Contact Plating: Gold
- Contact Material: Brass
New Old Stock * No longer available for export
MFR: Suhner
SKU: 32N-50-0-1/133NE
M55339/03-00027 Winchester Right Angle In Series Adapter Type-N Male to Female (Pull)
In Stock
- NSN# 5535-00-904-4050
- Body: Silver Plated
- Contact: Gold Plated
- Dielectric: PTFE
Used * No longer available for export
MFR: Winchester Interconnect Corporation
SKU: M55339/03-00027-WIN-P
172126 Amphenol Right Angle Type-N Male to N Female IN Series Adapter
In Stock
Ohms: 50
Body: Brass
Center Pin: Gold Plated
Dielectric: PTFE
MFR: Amphenol
SKU: 172126
172276 Amphenol Type-N Male to N Female IN Series Adapter
In Stock
Ohms: 50
Body: Brass
Center Pin: Gold Plated
Dielectric: PTFE
MFR: Amphenol
SKU: 172276
M55339/03-00027 Delta Right Angle In Series Adapter Type-N Male to Female (NOS)
In Stock
NSN# 5535-00-904-4050
Body: Silver Plated
Dielectric: PTFE
MFR: Delta
New Old Stock, No longer available for export
Made in USA
RFN1010-1 RF Industries Type-N Male to Double N Female IN Series Adapter
In Stock
- Body Finish: Silver
- Contact Finish: Gold
- Dielectric: PTFE
MFR: RF Industries
SKU: RFN-1010-1
