Misc. Transistors
Please choose from the following MISC. TRANSISTOR Sub-Catagory choices:
NOTE: THESE ARE TRANSISTORS WITH LETTER OR NUMBERS STARTING WITH:
-
BLY88C Philips Silicon Planar Epitaxial Transistor (Similar to 2N6081) (NOS)
$21.91N-P-N silicon planar epitaxial transistor intended for use in class-A, B and C operated mobile, h.f. and v.h.f. transmitters with a nominal supply voltage of 13.5 V. The transistor is resistance stabilized and is guaranteed to withstand severe load mismatch conditions with a supply over-voltage to 16.5 V.
It has a 3/8" capstan envelope with a ceramic cap. All leads are isolated from the stud.
New Old Stock * No longer available for export
MFR: Philips
SKU: BLY88C -
-

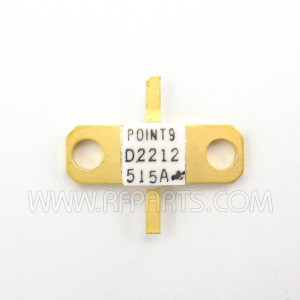

D2212 Point Nine Transistor 12v 10w 1 GHz 10dB (NOS)
$27.91 -

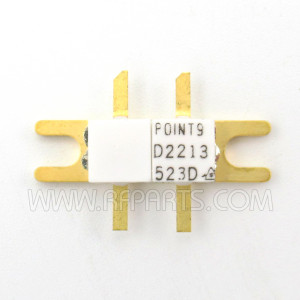

D2213 Point Nine Transistor 12v 20w 1 Ghz 10dB (NOS)
$34.91 -
DU1230S MA/COM RF Power MOSFET Transistor 30w 2-175MHz 12V (NOS)
$29.91 -
-
-
-
BFY90-APT Transistor, APT
$5.50 As low as: $4.95BFY90-APT Transistor, Discrete Low Power, TO-72 Case, MFR: APT
Silicon NPN transistor, designed for VHF/UHF equipment. Applications include low noise amplifier; oscillator, and mixer applications.
Features
- Silicon NPN, To-72 packaged VHF/UHF Transistor
- Low Noise, 2.5 dB (typ) @ 500 MHz, 5v, 2.0 mA,
- 1.3 GHz Current-Gain Bandwidth Product @ 25mA IC
- Power Gain, GPE = 19 dB (typ) @ 200 MHz
Limited Quantity Available, New Old Stock, Not for Export
-
