MRF700-900 Series
MRF700-900 Series
The MRF700-900 series includes a range of RF power transistors designed for various applications. These components are essential for efficient amplification in microwave and RF communications. Explore our selection to find the ideal part for your needs.

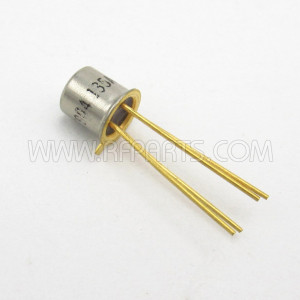

MRF904 Microsemi RF & Microwave Discrete Low Power Transistor 500 MHz (NOS)
In Stock
Designed for high current, low power, low noise, amplifiers up to 1.0 GHz.
- Low Noise - 2.5 dB @ 500 MHZ
- Gain at Optimum Noise Figure = 15.5 dB @ 500 MHz
- Ftau - 5.0 GHz @ 10v, 75mA
- Cost Effective MacroX Package
New Old Stock * No longer availabel for export
MFR: Microsemi
SKU: MRF904-MSC
MRF891 Motorola NPN Silicon RF Power Transistor 5.0W 24V 900 MHz (NOS)
In Stock
Designed for 24 Volt UHF large–signal, common emitter, amplifier applications in industrial and commercial FM equipment operating in the range of 800 to 960 MHz.
New Old Stock * No longer available for export
MFR: Motorola
SKU: MRF891
MRF892 Motorola NPN Silicon RF Power Transistor 14 W 24 V 900 MHz (NOS)
In Stock
Designed for 24 Volt UHF large–signal, common emitter, amplifier applications in industrial and commercial FM equipment operating in the range of 804 to 960 MHz.
New Old Stock * No longer available for export
MFR: Motorola
SKU: MFR892
MRF896 Motorola NPN Silicon RF Power Transistor 3W 900 MHz (NOS)
In Stock
Designed for 24 Volt UHF large-signal, common emitter, Class AB and Class A linear amplifier applications in industrial and commercial FM/AM equipment operating in the range 800-960 MHz.
- Specified 24 volt, 900 MHz Characteristics
- Output Power: 3.0 Watts
- Minimum Gain: 10dB @ 900 MHz
- Minimum Efficiency: 30% @ 900 MHz, 3.0 Watts
- Characterized with Series Equivalent Large-Signal Parameters from 800 to 960 MHz
- Silicon Nitride Passivated
- 100% Tested for Load Mismatch Stress at all Phase Angles with 5:1 VSWR @ 26 Vdc, at rated putput power
- Gold Metallized, Emitter Ballasted for Long Life and Resistance to Metal Migration
New Old Stock * No longer available for export
MFR: Motorola
SKU: MFR896
MRF897 Motorola NPN Silicon RF Power Transistor 24 V 900 MHz 30 W (NOS)
In Stock
Designed for 24 Volt UHF large–signal, common emitter, class–AB linear amplifier applications in industrial and commercial FM/AM equipment operating in the range 800–970 MHz.
New Old Stock * No longer available for export
MFR: Motorola
SKU: MRF897
MRF901 Motorola NPN Silicon High-Frequency Transistor 12 V (NOS)
In Stock
Designed primarily for use in high-gain, low-noise small-signal amplifiers for operation up to 2.5 GHz. Also usable in applications requiring fast switching times.
New Old Stock * No longer available for export
MFR: Motorola
SKU: MFR901
MRF9011LT1 Motorola NPN High-Frequency Surface Mount Transistor (NOS)
In Stock
Designed primarily for use in high-gain, low noise small-signal amplifiers for operation up to 2.5GHz.
New Old Stock * No longer available for export
MFR: Motorola
SKU: MRF9011LT1
See Data Sheet

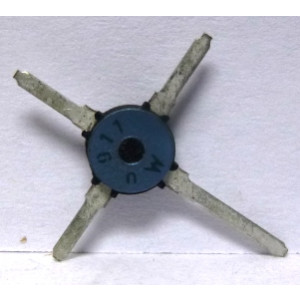

MRF911 Motorola NPN Silicon High Frequency Transistor (NOS)
In Stock
Designed primarily for use in high-gain, low-noise tuned and wideband small-signal amplifiers. Excellent in high-speed switching applications.
- High Current-Gain -Bandwidth Product- fT= 5.0 GHz (Typ) at f= 1.0 GHz
- High Power Gain- Gmax= 12.5 dB (Typ) at f= 1.0 GHz
New Old Stock * No longer available for export
MFR: Motorola
SKU: MRF911

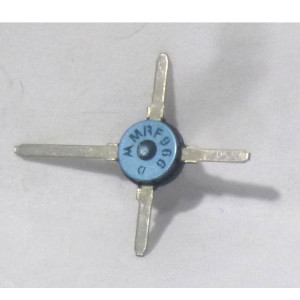

MRF966 Motorola N-Channel Dual-Gate GaAs Field-Effect Transistor 12V (NOS)
In Stock
Depletion mode dual-gate MES FET designed for high frequency amplifier and mixer applications.
New Old Stock * No longer available for export
MFR: Motorola
SKU: MRF966
MRF904 APT NPN Silicon RF & Microwave Discrete Low Power Transistor 450 MHz (NOS)
In Stock
Designed primarily for use in High Gain, low noise general-purpose amplifiers.
- High Frequency, To-72 packaged,
- High Power Gain - GU(max): 11 dB (typ) @ f = 450 MHz 7 dB (typ) @ f = 1 GHz
- Low Noise Figure NF = 1.5 dB (typ) @ f = 450 MHz
- High FT - 4 GHz (typ) @ IC = 15 mAdc
New Old Stock * No longer available for export
MFR: APT
SKU: MRF904-APT
