Hammarlund, Millen, & Bud Capacitors

HAMMARLUND, MILLEN, & BUD AIR VARIABLE CAPACITORS

Limited Quantity Available. NOS Original Capacitors (Some in original factory boxes)

(* For Reference Only - Not Available)

Hammarlund Part NumberCapacitancePlates / SectionDimensions, Inches. LxWxH
Max.Min.
20 5.5 3  (Single) 1-7/32
20 6.8 7 (Single)
53 10.5 19 (Single)
53 11.5 19 (Single)
100 7.7 14 (Single) 1-1/16
100 16.5 35 (Single) 3-29/32
250 12 34 (Single) 2.33" x 1.703" x 0.5"
31 6 11 (Dual)
50 5.5 7 (Dual) 1.625" x 3" x 1.75"
100 7 14 (Dual)
105 9.5 14 (Single)
143.5 11 19 (Single)
25 23 7 (Single) 0.912" x 1.25" x 0.812"
25 3.0 7 (Single) 21/64
30 3.0 15 (Single) 13/16
50 3.9 14 (Single) 1/2
75 4.6 20 (Single) 11/16
75 4.6 20 (Single) 11/16
100 5.5 27 (Single)
100 5.5 27 (Single) 59/64
140 6.3 37 (Single) 1.75" x 1.3" x 1.17"
140 6.3 37 (Single) 1.75" x 1.3" x 1.17"
14.5 3.4 7 (Butterfly) 1.25" x 1.375" x 1.375"
27.3 4.8 13 (Butterfly) 0.968" x 1.375" x 1.375"
40.1 6.2 19 (Butterfly)
17.5 2.8 5 (Single) 17/64
30 5.2 20 (Single) 1-5/16
36 3.2 10 (Single)
52 3.7 14 (Single) 1.172" x 1.3" x 1.172"
HF140 (Can Sub 32APL144DE)
142 6.3 37 (Single) 1.75" x 1.3" x 1.172"
16 2.8 5 (Single)
16 4 9 (Single)
102 4.5 19 (Single)
100 7.5 27 (Single)
200 8 38 (Single)
15 3 22 (Single) 1.5" x 2.6" x 1"
142 6.3 37 (Dual)
5.4 1.3 5 (Single) 0.609" x 0.75" x 0.625"
9.6 1.5 9 (Single) -
15.8 1.9 15 (Single) -
15.8 1.9 Rotor: 8
Ea. Stator: 7

21.5 2.2 21 (Single) -
32.0 2.5 27 (Single) -
3.1 1.3 3 (Butterfly) 0.75" x 0.75" x 0.625"
10.8 2.4 11 (Butterfly) 1.062" x 0.75" x 0.625"
15 2.3 6 (Single) 17/64
15 2.3 6 (Single) 17/64
25 2.6 10 (Single) 3/8
25 2.6 10 (Single) 3/8
35 2.9 14 (Single) 15/32
50 3.2 19 (Single) 37/64
50 3.2 1.9 (Single) 37/64
50 3.2 1.9 (Single) 37/64
75 3.9 29 (Single) 53/64
75 3.9 29 (Single) 53/64
100 4.5 38 (Single) 1-5/64
100 4.5 38 (Single) 1-5/64

Misc. Hammarlund Caps

144 12 34  (Single) 1.4" x 2.3" x 1.36"
420 20 55 (Single) 3.34" x 1.82" x 1.67"
510 25 69
20 7 4 (Single) 1.7" x 1.7" x 1.8 "
(Shaft Length 4.5")
VU20 *
20 2.2 11




Millen Caps

17025
25 3 4
19015
20 5.5 3
30.5 5.7 4
23025
23 4 5

Bud Caps

MC904
75 7 11

Misc. Items

Flexible Coupling  (See Shaft Couplers)

List  Grid

per page
Set Descending Direction
  1. RMC100S Variable Capacitor, Panel Mount, 9.5-105 pf, Hammarlund

    RMC100S Variable Capacitor, Panel Mount, 9.5-105 pf, Hammarlund

    $32.95

    Out of stock

    RMC100S Variable Capacitor, Panel Mount, 9.5-105 pf, 14 Plates, MFR: Hammarlund

    This item is no longer offered by RF Parts Company.

  2. MCD35MX Variable Capacitor, Panel Mount, 6- 31 pf, 2 Section, Hammarlund

    MCD35MX Variable Capacitor, Panel Mount, 6- 31 pf, 2 Section, Hammarlund

    $34.95

    Out of stock

    MCD35MX Variable Capacitor, Panel Mount, 6- 31 pf, 2 Section, 11 Plates per section, MFR: Hammarlund

  3. RMC140S Variable Capacitor, Panel Mount, 11-143.5 pf, Hammarlund

    RMC140S Variable Capacitor, Panel Mount, 11-143.5 pf, Hammarlund

    $34.95

    Out of stock

    RMC140S Variable Capacitor, Panel Mount, 11-143.5 pf, 19 Plates, MFR: Hammarlund

  4. BFC38 Variable Capacitor, Panel Mount, 6.2-40.1 pf, Hammarlund

    BFC38 Variable Capacitor, Panel Mount, 6.2-40.1 pf, Hammarlund

    $27.95

    Out of stock

    BFC25 Variable Capacitor, Panel Mount, 4.8-27.3 pf, MFR: Hammarlund

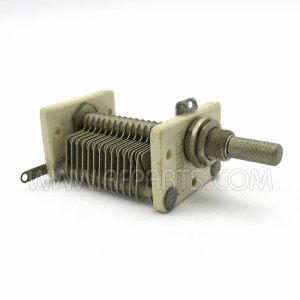

  5. HFA100B  Variable Capacitor, 7.5-100pf, Hammerlund

    HFA100B Variable Capacitor, 7.5-100pf, Hammerlund

    $32.95

    Out of stock

    HFA100B  Variable Capacitor, 7.5-100pf, 27 plates, MFR: Hammerlund


  6. RMC-325-S Hammarlund Variable Capacitor (Pull)

    RMC-325-S Hammarlund Variable Capacitor (Pull)

    $32.91

    The "RMC" was designed specifically for applications requiring an "MC" type tuning capacitor with very ridgid construction. It has heavy gauge aluminum end panels held together by three aluminum tie rods. It has a brass sleeve front bearing and a single ball thrust rear bearing for smooth tuning and a high degree of reliability.

    Rear bottom mounting bracket has been removed by previous owner.

    Air gap: .0245"
    Maximum Capcity: 327pf
    Minimum Capcity: 17.5pf
    Plates: 43

    Used * No longer available for export
    MFR: Hammarlund
    SKU: RMC-325-S-P

    Made in the USA

  7. 19025 Variable Capacitor, Panel Mount, 5.7- 30.5 pf, Millen

    19025 Variable Capacitor, Panel Mount, 5.7- 30.5 pf, Millen

    $24.95

    Out of stock

    19025 Variable Capacitor, Panel Mount, 5.7- 30.5 pf, 4 Plates, MFR: James Millen MFR Co.

    Made in the USA
  8. MC904  Variable Capacitor, 7-75pf, BUD (MC75M)

    MC904 Variable Capacitor, 7-75pf, BUD (MC75M)

    $28.95

    MC904  Variable Capacitor, 7-75pf, 11 plates, MFR: BUD (Similar to MC75M)


  9. 19015 Variable Capacitor, Panel Mount, 5.5- 20 pf, 3 Plates, Millen

    19015 Variable Capacitor, Panel Mount, 5.5- 20 pf, 3 Plates, Millen

    $24.95

    19015 Variable Capacitor, Panel Mount, 5.5- 20 pf, 3 plates, MFR: Millen (MC20S)

    Made in the USA

  10. 17025 Variable Capacitor, Panel Mount, 3- 25 pf, 4 Plates, Millen

    17025 Variable Capacitor, Panel Mount, 3- 25 pf, 4 Plates, Millen

    $22.95

    17025 Variable Capacitor, Large Air Padder, Panel Mount, 3 - 25 pf, 4 Plates, MFR: Millen



    Made in the USA
