Vacuum Variable
Please choose from the following VACUUM VARIABLE Sub-Catagory choices:
ATC-50-20 Jennings 10-50pf 20 KV Vacuum Variable Capacitor (Pull)
In Stock
Capacitance: 10-50pf
Max Voltage Rating: 20 KV
Used
MFR: Jennings
SKU: ATC-50-20-P
Add to Cart
FM3B Mounting Flange for Vacuum Capacitors (Like New)
In Stock
- Material: 0.062 Copper with Silver plating
- Inner Diameter: 3.14 in / 79.756 mm
- Outer Diameter: 4.25 in / 107.95 mm
- Height: 1.50 in / 38.1 mm
Like New Condition * No longer available for export
SKU: FM3B-LN
UCSL-250-5 Jennings Variable Vacuum Capacitor 4-250pf 5Kv (Pull)
In Stock
- Capacitance: 4-250pf
- Voltage: 5kv
- Dimensions: 2.180x2.180x4.75in
- Shaft diameter: .25in
Used * No longer available for export
MFR: Jennings
SKU: UCSL-250-5-P
Add to Cart
KPI-8 Polaron Vacuum Variable Capacitor 15-750pf 5kV (Pull)
In Stock
The glass-metal sheath is designed for operation in DC, AC circuits and in pulsed modes. Has very exact and stable parameters.
Min. capacity: 15pF
Max. capacity: 750pF
Max. operating voltage: 5kV
Nominal current at 30MHz: 35A
MFR: Polaron
SKU: KPI-8

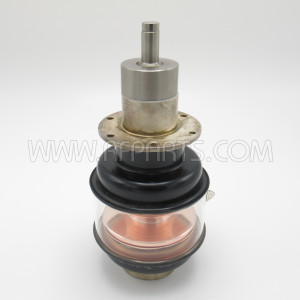

KPI-12 Russian Vacuum Variable Capacitor 10-1200pf 4kV (NOS)
In Stock
- Capacitance: 10pf to 1200pf
- Nominal operating voltage 4 kV
- Nominal HF current 50 A
- Frequency range up to 30 MH
New Old Stock * No longer available for export
Made in Russia
SKU: KPI-12

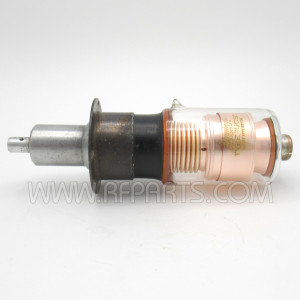

UCS-300 Jennings Vacuum Variable Capacitor 20-300pf 10KV (Pull)
In Stock
- Capacitance: 20 - 300pf
- Max Voltage: 10,000v
- Size: 8-3/4' long x 3" diameter (flange)
Used
MFR: Jennings
SKU: UCS300-P

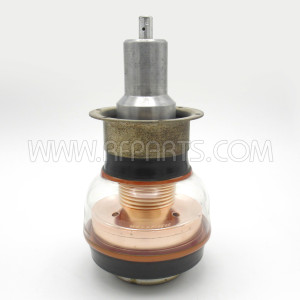

UCSXF-1500 Jennings Vacuum Variable Capacitor 20-1500pf 5KV (Pull)
In Stock
- Capacitance: 20 - 1500pf
- Max Voltage: 5,000v
- Size: 9-3/4' long x 5-3/16" diameter (flange)
Used
MFR: Jennings
SKU: UCSXF-1500-P

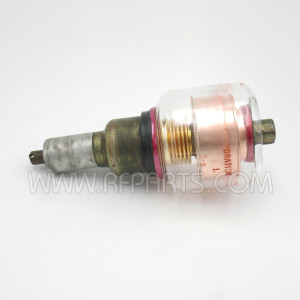

VVC-500 Dolinko & Wilkens Vacuum Variable Capacitor 12-500 pf 5.5 KV Peak (Pull)
In Stock
- Rated Capacitance: 12-500 pF
- Peak Voltage: 5.5 KV
Used * No longer available for export
MFR: Dolinko & Wilkens
SKU: VVC-500-12-5.5-P

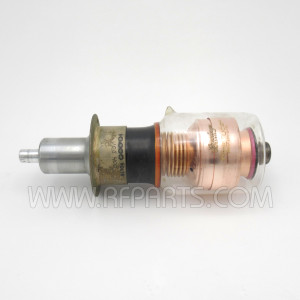

UCS-400 Jennings Vacuum Variable Capacitor 10-400pf 10KV (Pull)
In Stock
- Capacitance: 10 - 400pf
- Max Voltage: 10,000v
- Size: 9-1/8" long x 3" diameter (flange)
Used
MFR: Jennings
SKU: UCS400-P

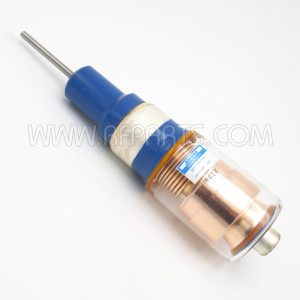

UCS-300-10S Jennings Vacuum Variable Capacitor 10-300pf 10kv (Pull)
In Stock
Rated Capacitance: 10-300 pf
Peak Voltage: 10 KV
Current Amps (RMS) Maximum: 42 amps
Used - Removed from working equipment
MFR: Jennings\
SKU: UCS-300-10S-P
