MRF/SRF/M Series
Please choose from the following MRF Sub-Catagory choices:
|
|
|
|
|
|
|
|
|
|
|
|
-
MRF275G Motorola Mosfet Transistor 150W 500MHz 28V (NOS)
$249.91 -
MRF227 Microsemi NPN Silicon RF Power Transistor 12.5 V 225 MHz 3W
$6.91 As low as: $5.61Designed for 12.5 Volt VHF large-signal power amplifier applications in communication equipment operating at 225 MHz. Ideally suited for Class E citizens band radio.
- Specified 12.5 Volt, 225 MHz Characteristics- Output Power= 3.0 W, Minimum Gain= 13.5 dB, efficiency= 60%
New Old Stock * No longer available for export
MFR: Microsemi
SKU: MRF227-MSC -
MRF237 Microsemi NPN Silicon RF Power Transistor 12.5 V/90 MHz/15 W (NOS)
$9.91 -
MRF245 Motorola Transistor NPN Silicon RF Power Transistor 80 Watt 12 Volt 175 MHz (NOS)
$48.91 -
MRF240 Motorola NPN Silicon Power Transistor 40W 160 MHz 13.6V (NOS)
$54.91Designed for 13.6 V VHF large-signal Class C and Class AB linear power amplifier applications in industrial and commercial equipment.
- Specified 13.6 V, 160 MHz characteristics — Output power = 40 W, Power Gain = 9.0 dB Min, Efficiency = 55% Min
- High Common Emitter Power Gain
- Load Mismatch Capability at Rated Voltage and RF Drive
- Silicon Nitride Passivated
- Low Intermodulation Distortion, d3= -30 dB Typ
New Old Stock * No longer available for export
MFR: Motorola
SKU: MRF240 -

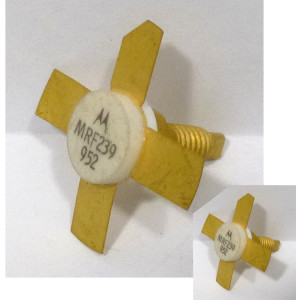

MRF239 Motorola NPN Silicon RF Power Transistor 13.6V 160 MHz 30W Matched Pair (2) (NOS)
$85.91Designed for 13.6 Volt VHF large-signal class C and class AB linear power amplifier applications required in comercial and industrial equipment.
- Specified 13.6 Volt, 160 MHz Characteristics: Output Power= 30 W, Minimum Gain= 10 dB (Min), Efficiency= 65% (Typ)
- High Common Emitter Power Gain
- Silicon Nitride Passivated
- Low Intermodulation Dsitortion, d3= -35 dB Typ
New Old Stock * No longer available for export
MFR: Motorola
SKU: MRF239MP -
MRF221 Motorola NPN Silicon RF Power Transistor 12.5V 175 MHz 15W (NOS)
$38.91Designed for 12.5 Volt VHF large-signal power amplifier applications required in commercial and industrial equipment operating to 300 MHz.
- Specified 12.5 Volt, 175 MHz Characteristics- Output Power= 15 W, Minimum Gain= 6.3 dB, efficiency= 60%
New Old Stock * No longer available for export
MFR: Motorola
SKU: MRF221 -
MRF229 Motorola NPN Silicon Power Transistor 1.5W 90 MHz 12.5V (NOS)
$7.91Designed for 12.5 V, mid-band large-signal amplifier applications in industrial and commercial FM equipment operating in the 40 to 100 MHz range.
- Specified 12.5 V, 90 MHz characteristics — Output power = 1.5 W, Minimum gain = 10 dB, Efficiency = 55%
- 100% tested for load mismatch at all phase angles with 30:1 VSWR
- Characterized with Series Equivalent Large-signal Impedance Parameters
- Characterized with parallel Equivalent Large-signal Impedance Parameters
New Old Stock * No longer available for export
MFR: Motorola
SKU: MRF229 -
-
MRF208 Motorola NPN Silicon RF Power Transistor 12.5V 220 MHz 10W Matched Pair (2) (NOS)
$91.91Designed for 12.5 Volt large-signal power amplifier applications in communications equipment operating at 220 MHz.
- Specified 12.5 Volt, 220 MHz Characteristics: Output Power= 10 W, Minimum Gain= 8.2 dB
- Balanced Emitter Construction to provide the designer with the device technology that assures ruggedness and resists transister damage caused by load mismatch.
New Old Stock * No longer available for export
MFR: Motorola
SKU: MRF208MPMade in the USA
